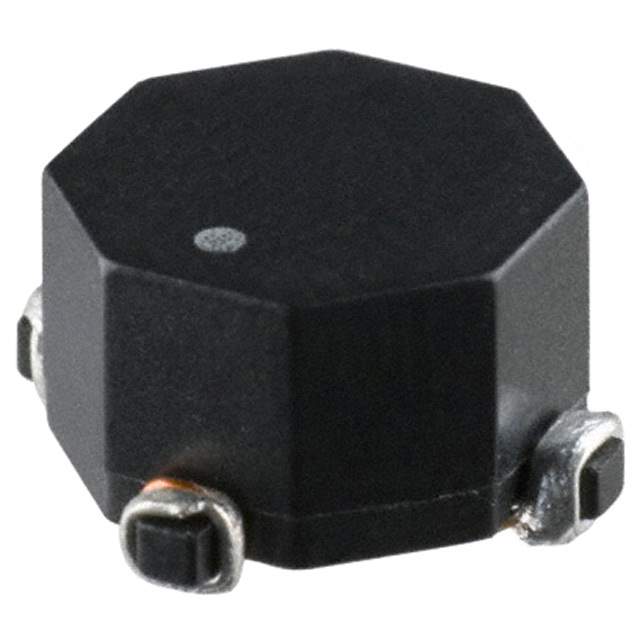

CMS2-14-R Real Image
Same model may have multiple batches, images only for reference.

CMS2-14-R

Part No CMS2-14-R
Manufacturer Eaton Bussmann
Catalog Common Mode Chokes
Description CMC 1.34MH 500MA 2LN SMD / 1.34 mH @ 100 kHz 2 Line Common Mode Choke Surface Mount 500mA DCR 620mOhm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Eaton - Electronics Division
Series CMS
Package Tape & Reel
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.34 mH @ 100 kHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 620mOhm (Typ)
Temperature Range - Operating -40°C ~ 160°C
Mounting SMD (SMT)
Dimension 0.350" L x 0.350" W (8.90mm x 8.90mm)
Height (Max) 0.236" (6.00mm)
Package / Case Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names CMS2-14-ND,CMS2-14-R-ND,513-1788-1,513-1788-2,513-1788-6,CMS2-14,CMS214R
Standard Package 800
Win Source Part Number 1023565-CMS2-14-R
Ultra Librarian 3D Model Ultra Librarian CMS2-14-R CAD Model

Description

The CMS2-14-R is a common mode choke filter designed and manufactured by Eaton - Electronics Division.

  • Maximum Current Rating: 500mA
  • Inductance: 1.34mH @ 100kHz
  • Applications: Power supplies, DC-DC converters, and noise suppression circuits
  • RoHS Compliant: Yes
  • ECCN: EAR99
  • MSL Level: 1
