MS0850506F020V2A E-Switch – Price, Stock & Datasheet

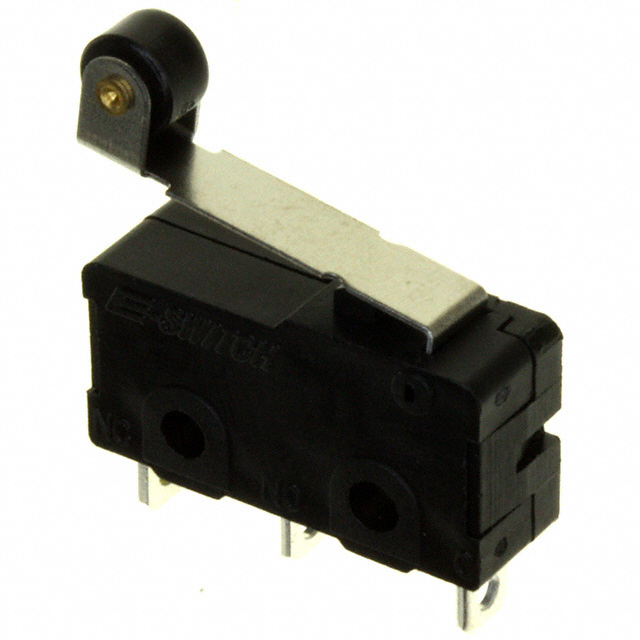

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Leaf
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Operating Force 20gf
Release Force 8.000gf
Operating Position 0.547" (13.9mm)
Pretravel 0.161" (4.1mm)
Mechanical Life 1,000,000 Cycles
Electrical Life 50,000 Cycles
Temperature Range - Operating -25°C ~ 85°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1551982-MS0850506F020V2A
Ultra Librarian 3D Model Ultra Librarian MS0850506F020V2A CAD Model
