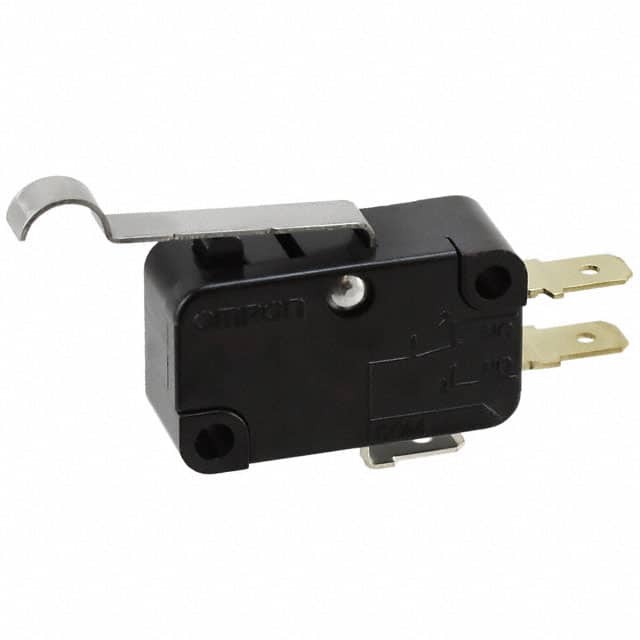

The V-154-1C25 is a limit switch from Omron's V series.

• Termination Style: Quick Connect, 0.187" (4.7mm)
• Voltage Rating: 250 V AC, 125 V DC
• Circuit: Single-Pole Double-Throw (SPDT)
• Switch Function: On-Mom
• Actuator Type: Lever, Simulated Roller
• Electrical Life: 100,000 Cycles
• Mechanical Life: 50,000,000 Cycles
• Operating Force: 125gf
• Release Force: 14gf
• Pretravel Distance: 0.157" (4.0mm)
• Differential Travel: 0.060" (1.5mm)
• Overtravel: 0.062" (1.6mm)
• Mounting Type: Chassis Mount
• Operating Temperature Range: -25°C to 80°C
• Suitable for: Various applications in the electronics industry.
