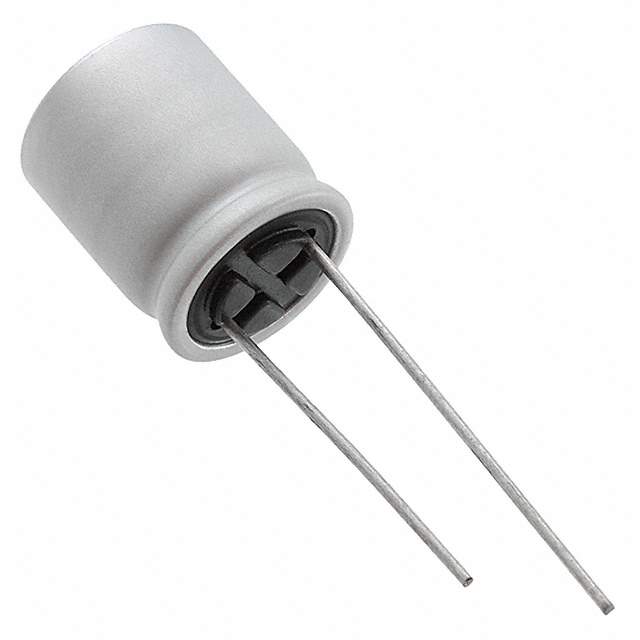

10SEP560M Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Bulk
Type Polymer
Capacitance 560μF
Tolerance ±20%
Voltage - Rated 10V
ESR (Equivalent Series Resistance) 13mOhm
Lifetime at Temp. 3000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current at Low Frequency 261.5mA at 120Hz
Ripple Current at High Frequency 5.23A at 100kHz
Lead Spacing 0.197"
Parts Dimension 0.394" Dia (10.00mm)
Height - Seated (Maximum) 0.512" (13.00mm)
Mounting Style Through Hole
Manufacturer Package Radial, Can
Manufacturer Pack Quantity 200
MSL Level 1 (Unlimited)
Win Source Part Number 1121076-10SEP560M
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 10SEP560M CAD Model

Description

The Panasonic Electronic Components 599509 is a polymer capacitor with a nominal capacitance of 560μF, with a tolerance of ±20%. Bold the product name (e.g., BAV99S,135 → 599509) and manufacturer (e.g., Nexperia USA Inc. → Panasonic Electronic Components).

  • Type: Polymer Capacitor
  • Capacitance: 560μF
  • Tolerance: ±20%
  • Rated Voltage: 10V
  • Lead Spacing: 0.197"
  • ESR: 13mOhm
  • Maximum Height: 0.512" (13.00mm)
  • Category: Capacitors
  • Package: Radial, can
  • Supply and Demand Status: Limited
