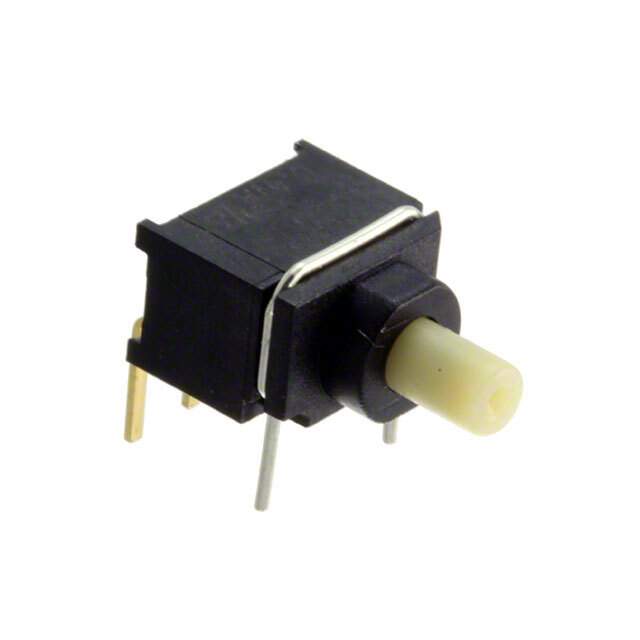

800USP8P1A1M6RE Real Image
Same model may have multiple batches, images only for reference.

800USP8P1A1M6RE

Part No 800USP8P1A1M6RE
Manufacturer E-Switch
Catalog Pushbutton Switches
Description SWITCH PUSH SPDT 0.4VA 20V / Pushbutton Switch SPDT Standard Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Manufacturer E-Switch
Packaging Tube
Mounting Through Hole, Right Angle
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Plunger for Cap
Actuator Marking No Marking
Termination Style PC Pin
Ingress Protection IP67 - Dust Tight, Waterproof
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Mechanical Life 40,000 Cycles
Electrical Life 6,000 Cycles
Base Product Number 800USP8
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Part Number EG5342
Standard Package 65
Win Source Part Number 1323771-800USP8P1A1M6RE
Ultra Librarian 3D Model Ultra Librarian 800USP8P1A1M6RE CAD Model

Description

The 800USP8P1A1M6RE switch is a standard SPDT pushbutton switch with epoxy-sealed terminals from E-Switch.

  • Switch Type: Pushbutton
  • Circuit: SPDT
  • Voltage Rating: 20V AC/DC
  • Current Rating: 0.4VA
  • Ingress Protection: IP67 (dust-tight and waterproof)
  • Actuator Type: Plunger for cap
  • Switch Function: On-Mom
  • Electrical Life: 6,000 cycles
  • Mechanical Life: 40,000 cycles
  • Operating Temperature: -30°C to 85°C
  • Mounting Type: Through Hole
  • Mounting Style: Right-Angle
  • Packaging: Tube
  • Standard Package: 65
