Diodes Incorporated PI3USB30532ZLEX: USB 3.1 Gen 1 Switch with Charging Port Detection

The PI3USB30532ZLEX is a versatile and high-performance USB 3.1 Gen 1 switch with integrated charging port detection, designed and manufactured by Diodes Incorporated. This advanced switch is specifically tailored for applications that require switching of high-speed USB signals through USB Type-C connectors, making it an ideal solution for a wide range of consumer electronics, including smartphones, tablets, laptops, and desktop computers.

With its support for USB 3.1 Gen 1, the PI3USB30532ZLEX offers data transfer rates of up to 5 Gbps, ensuring fast and efficient data exchange between devices. The product features two differential channels that can be configured as either a single DPDT (Double Pole, Double Throw) switch or as two SPDT (Single Pole, Double Throw) switches, providing design flexibility to accommodate various USB configurations.

The integrated charging port detection capability of the PI3USB30532ZLEX allows it to identify the type of device connected to the USB port, enabling optimized charging for a wide range of devices. This feature is particularly useful for ensuring compatibility with different charging standards and for providing the correct charging current to maximize efficiency and battery life.

Designed with a focus on power efficiency, the PI3USB30532ZLEX also incorporates advanced power management features. It includes an ultra-low power state to minimize power consumption when the switch is not in active use, contributing to the overall energy efficiency of the end product. This makes the switch well-suited for battery-powered devices where power conservation is critical.

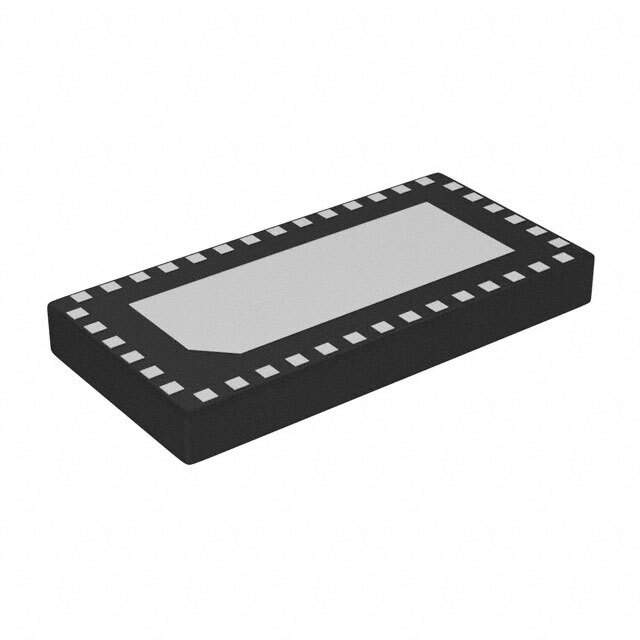

The PI3USB30532ZLEX is offered in a compact, space-saving 30-contact TQFN package, which measures just 2.5mm x 4.5mm, providing a minimal footprint on the PCB. This small form factor, combined with the switch's robust ESD protection, ensures that the PI3USB30532ZLEX can be integrated into the most space-constrained designs without compromising on performance or durability.

In summary, the PI3USB30532ZLEX from Diodes Incorporated is a high-quality, feature-rich USB 3.1 Gen 1 switch that provides fast data transfer, flexible switching options, and intelligent charging port detection, all within a compact package ideal for today's cutting-edge electronic devices.
