Same model may have multiple batches, images only for reference.

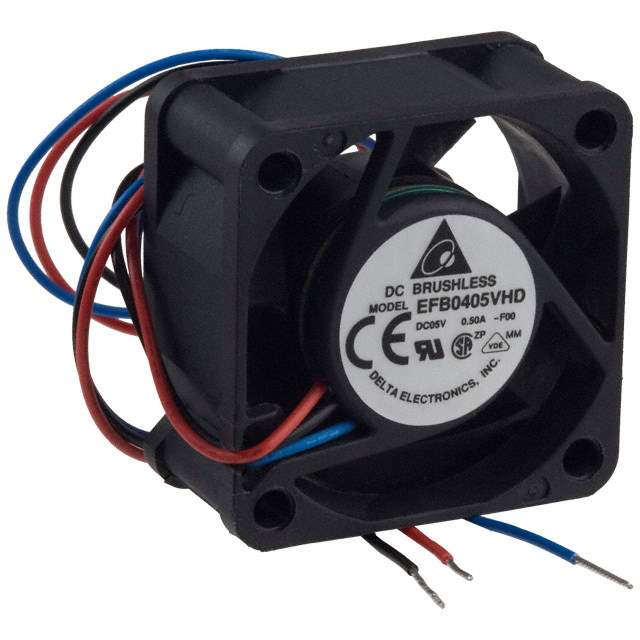

EFB0405VHD-F00 Real Image
Same model may have multiple batches, images only for reference.

EFB0405VHD-F00

Part No EFB0405VHD-F00
Manufacturer Delta Electronics
Catalog DC Fans
Description FAN AXIAL 40X20MM BALL 5VDC WIRE / Fan Tubeaxial 5VDC Square - 40mm L x 40mm H Ball 10.1 CFM (0.283m³/min) 3 Wire Leads
Datasheet
EFB0405VHD-F00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series EFB
Package Box
Voltage - Rated 5VDC
Dimension Square - 40mm L x 40mm H
Width 20.00mm
Air Flow 10.1 CFM (0.283m³/min)
Static Pressure 0.416 in H2O (103.6 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection, Speed Sensor (Tach)
Noise 32.5dB(A)
Power (Watts) 1.6 W
RPM 9000 RPM
Termination 3 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.073 lb (33.11 g)
Current Rating (Amps) 0.320A
Voltage Range 4.5 ~ 5.5VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number EFB0405
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Other Names EFB0405VHDF00,603-1008
Standard Package 336
Win Source Part Number 1212769-EFB0405VHD-F00
Ultra Librarian 3D Model Ultra Librarian EFB0405VHD-F00 CAD Model

Description

The Delta Electronics EFB0405VHD-F00 is a DC brushless fan from Delta Electronics that has a voltage rating of 5VDC and a power of 1.6W.

  • Voltage: 5VDC
  • Power: 1.6W
  • Lifetime: 70000 hours @ 40 degrees Celsius
  • Package: Box
  • Width: 20.00mm
  • Square Dimension: 40mm L x 40mm H
  • Air Flow: 10.1 CFM (0.283m³/min)
  • Static Pressure: 0.416 in H2O (103.6 Pa)
  • Bearing Type: Ball
  • Fan Type: Tubeaxial
  • Noise Level: 32.5dB(A)
  • RPM: 9000
  • Frame and Blade Material: Plastic
  • Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
  • MSL Level: 1 (unlimited)
  • Current Rating: 0.320A
  • REACH: REACH unaffected
  • HTSUS: 8414.59.6590
  • Approvals: CE, CSA, UL, VDE
  • Other Names: EFB0405VHDF00, 603-1008
  • Base Product Number: EFB0405
