Same model may have multiple batches, images only for reference.

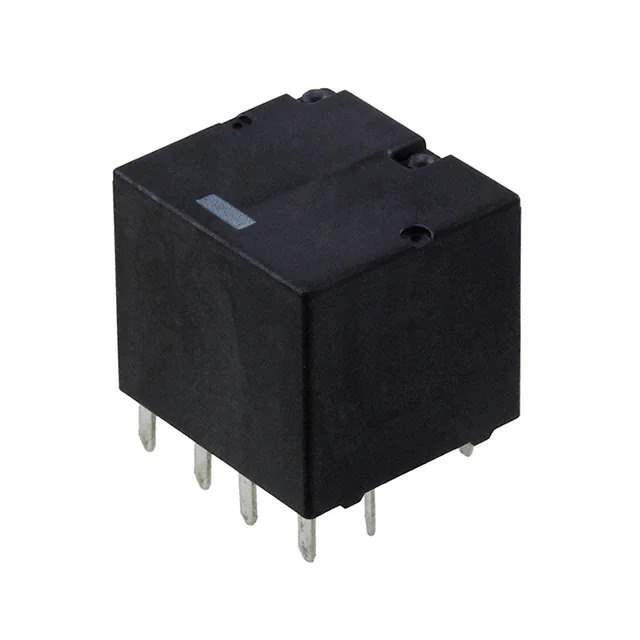

G8NW-2L-DC12 Real Image
Same model may have multiple batches, images only for reference.

G8NW-2L-DC12

Part No G8NW-2L-DC12
Manufacturer Omron
Catalog Automotive Relays
Description RELAY AUTOMOTIVE SPDT 30A 12V
Datasheet
G8NW-2L-DC12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Automotive Relays
Mfr Omron
Series G8NW-2
Package Tray
Product Status Obsolete
Coil Type Non Latching
Coil Current 53.3 mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C) x 2
Contact Rating (Current) 30 A
Switching Voltage 16VDC - Max
Must Operate Voltage 7.2 VDC
Must Release Voltage 1 VDC
Operate Time 10 ms
Release Time 10 ms
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 105°C
Contact Material Silver Tin Oxide (AgSnO)
Coil Power 640mW
Coil Resistance 225 Ohms
Base Product Number G8NW
Standard Package 1,080 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.49.0050
Win Source Part Number 872568-G8NW-2L-DC12
Ultra Librarian 3D Model Ultra Librarian G8NW-2L-DC12 CAD Model

Description

The Omron G8NW-2L-DC12 Automotive Relay is a high-quality relay designed for automotive applications.

  • Termination Style: PC pin
  • Contact Form: SPDT (1 Form C) x 2
  • Contact Material: Silver tin oxide (AgSnO)
  • Coil Voltage: 12VDC
  • Coil Resistance: 225 Ohms
  • Contact Rating: 30A
  • Switching Voltage: 16VDC
  • Mounting: Through-hole
  • Temperature Range: -40°C to 105°C
  • Relay Type: Non-latching
  • Operate Time and Release Time: 10ms
