3610SB-05W-B30-B00

Part No 3610SB-05W-B30-B00
Manufacturer NMB Technologies Corporation
Catalog DC Fans
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr NMB Technologies Corporation
Series 09225SA
Package Bulk
Product Status Obsolete
Voltage - Rated 24VDC
Dimension Square - 92mm L x 92mm H
Width 25.00mm
Air Flow 41.3 CFM (1.16m³/min)
Static Pressure 0.120 in H2O (29.9 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Noise 28.0dB
Power (Watts) 1.2 W
RPM 2400 RPM
Termination 2 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, UL, VDE
Weight 0.209 lb (94.8 g)
Current Rating (Amps) 0.050A
Voltage Range 12 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 100000 Hrs @ 25°C
Base Product Number 3610SB
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1316288-3610SB-05W-B30-B00
Ultra Librarian 3D Model Ultra Librarian 3610SB-05W-B30-B00 CAD Model

Description

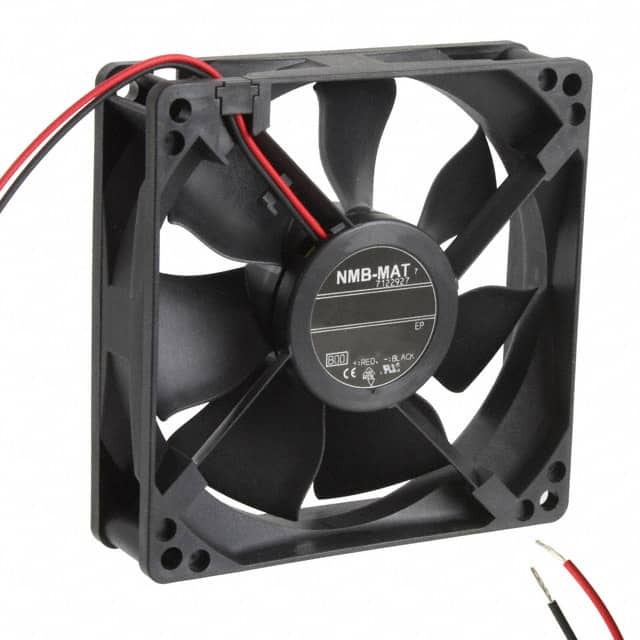

The NMB Technologies Corporation 3610SB-05W-B30-B00 electronic component is a DC brushless fan with a voltage range of 12 ~ 27.6VDC.

  • Voltage Range: 12 ~ 27.6VDC
  • Rated Voltage: 24VDC
  • Power: 1.2W
  • Lifetime: 100,000 Hours @ 25 degrees Celsius
  • Weight: 0.209 lb (94.8 g)
  • Width: 25.00mm
  • Air Flow: 41.3 CFM (1.16m³/min)
  • Static Pressure: 0.120 in H2O (29.9 Pa)
  • Bearing Type: Ball
  • Fan Type: Tubeaxial
  • Noise Level: 28.0dB
  • RPM: 2400 RPM
  • Frame Material: Plastic
  • Blade Material: Plastic
  • Operating Temperature Range: 14 ~ 158 degrees Fahrenheit (-10 ~ 70 degrees Celsius)
  • Square Dimension: 92mm L x 92mm H
  • HTSUS: 8414.59.6590
  • Base Product Number: 3610SB
  • Status: Obsolete
  • Approval Agency Certifications: CE, UL, VDE
