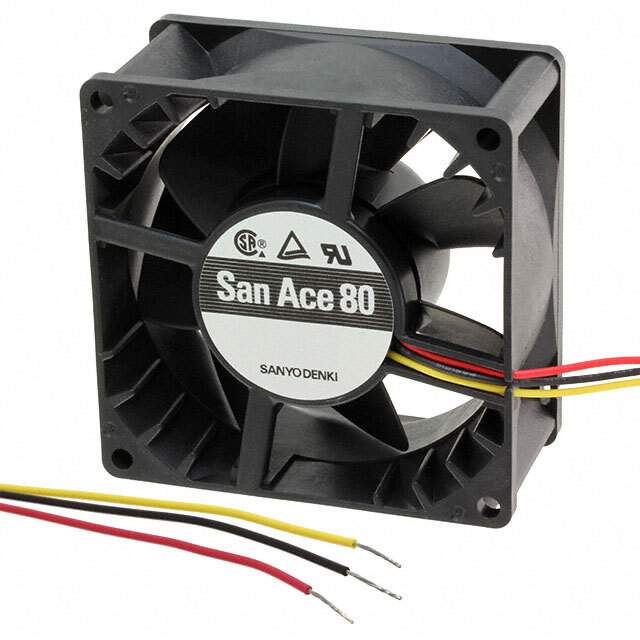

9GV0812P4K03 Real Image
Same model may have multiple batches, images only for reference.

9GV0812P4K03

Part No 9GV0812P4K03
Manufacturer Sanyo Denki America Inc.
Catalog DC Fans
Description FAN 80X25MM 12VDC VANE TACH,PWM / Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 74.8 CFM (2.09m³/min) 4 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 80
Package Box
Product Status Obsolete
Voltage - Rated 12VDC
Dimension Square - 80mm L x 80mm H
Width 25.40mm
Air Flow 74.8 CFM (2.09m³/min)
Static Pressure 0.690 in H2O (171.8 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features PWM Control, Speed Sensor (Tach)
Noise 52.0dB(A)
Power (Watts) 10.4 W
RPM 5600 RPM
Termination 4 Wire Leads
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CSA, TUV, UL
Weight 0.276 lb (125.19 g)
Current Rating (Amps) 0.870A
Voltage Range 10.2 ~ 13.8VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 40000 Hrs @ 60°C
Base Product Number 9GV0812
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Other Names 1688-1670
Standard Package 72
Win Source Part Number 1229856-9GV0812P4K03
Ultra Librarian 3D Model Ultra Librarian 9GV0812P4K03 CAD Model

Description

The 9GV0812P4K03 by Sanyo Denki America Inc. is a DC brushless fan that is a part of the San Ace 80 series.

  • Series: San Ace 80
  • Voltage Range: 10.2 ~ 13.8VDC
  • Rated Voltage: 12VDC
  • Power: 10.4W
  • Weight: 0.276 lb (125.19 g)
  • Lifetime: 40000 Hrs @ 60°C
  • Fan Type: tubeaxial
  • Bearing Type: ball bearing
  • Noise Level: 52.0dB(A)
  • RPM: 5600 RPM
  • Frame Material: plastic
  • Blade Material: plastic
  • Temperature Range: -4 ~ 158°F (-20 ~ 70°C)
  • Component Status: obsolete
  • Supply and Demand Status: limited
