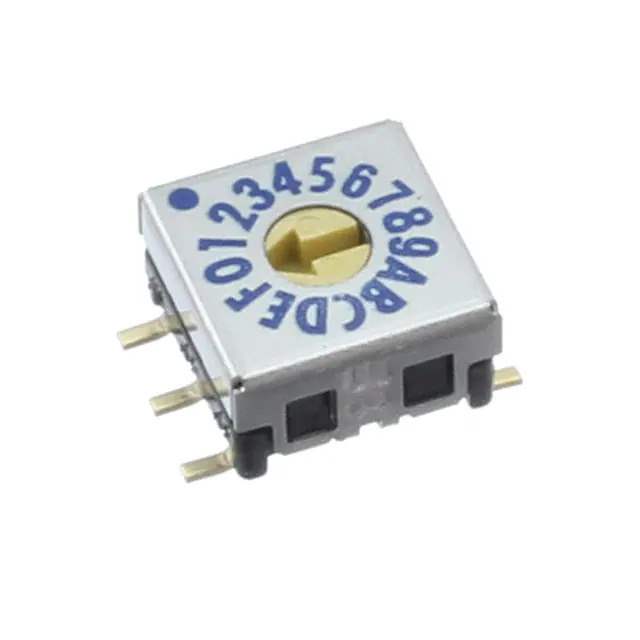

SMR7016C-1 Real Image
Same model may have multiple batches, images only for reference.

SMR7016C-1

Part No SMR7016C-1
Manufacturer Nidec Copal Electronics
Catalog DIP Switches
Description SW ROT DIP 16 POS REAL SMD
Datasheet
SMR7016C-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Nidec Copal Electronics
Series SMR
Package Tube
Product Status Active
Circuit Hexadecimal
Number of Positions 16
Current Rating (Amps) 30mA
Voltage Rating 15VDC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.173" (4.40mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Temperature Range - Operating -25°C ~ 85°C
Length 0.295" (7.50mm)
Mechanical Life 10,000 Steps
Electrical Life 10,000 Steps
Base Product Number SMR7016C
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 848261-SMR7016C-1
Ultra Librarian 3D Model Ultra Librarian SMR7016C-1 CAD Model

Description

The SMR7016C-1 is a DIP switch from Nidec Copal Electronics.

  • Series: SMR
  • Number of Positions: 16
  • Pitch: 0.100" (2.54mm)
  • Termination Style: Gull Wing
  • Contact Finish: Gold
  • Mounting Type: Surface Mount
  • Voltage Rating: 15VDC
  • Height Above Board: 0.173" (4.40mm)
  • Length: 0.295" (7.50mm)
  • Circuit: Hexadecimal
  • Actuator Type: Rotary for Tool
  • Electrical Life: 10,000 Steps
  • Mechanical Life: 10,000 Steps
  • Washable: Yes
  • Temperature Range: -25°C to 85°C
  • Packaging: Tube
  • Standard Package: 1,000 pcs
