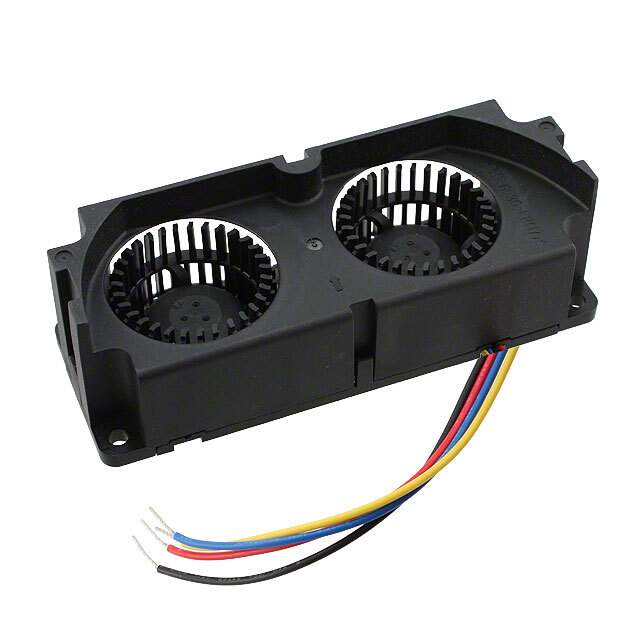

SFB0212HH-F00 Real Image
Same model may have multiple batches, images only for reference.

SFB0212HH-F00

Part No SFB0212HH-F00
Manufacturer Delta Electronics
Catalog DC Fans
Datasheet
SFB0212HH-F00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series SFB
Package Box
Product Status Obsolete
Voltage - Rated 12VDC
Dimension Rectangular - 125mm L x 38mm H
Width 45.00mm
Air Flow 23.1 CFM (0.647m³/min)
Static Pressure 0.643 in H2O (160.2 Pa)
Bearing Type Ball
Fan Type Blower, Centrifugal (Dual)
Features Locked Rotor Protection, Speed Sensor (Tach)
Noise 52.0dB(A)
Power (Watts) 7.44 W
RPM 7000 RPM
Termination 3 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.267 lb (121.11 g)
Current Rating (Amps) 0.620A
Voltage Range 5.5 ~ 13.8VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 50000 Hrs @ 40°C
Base Product Number SFB0212
Other Names 603-1251,SFB0212HHF00
Standard Package 48
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6560
Win Source Part Number 1277316-SFB0212HH-F00
Ultra Librarian 3D Model Ultra Librarian SFB0212HH-F00 CAD Model

Description

The SFB0212HH-F00 is a DC brushless fan manufactured by Delta Electronics.

  • Supply and Demand Status: Unlimited
