AFB0824SH-R00 Delta Electronics
Same model may have multiple batches, images only for reference.

AFB0824SH-R00

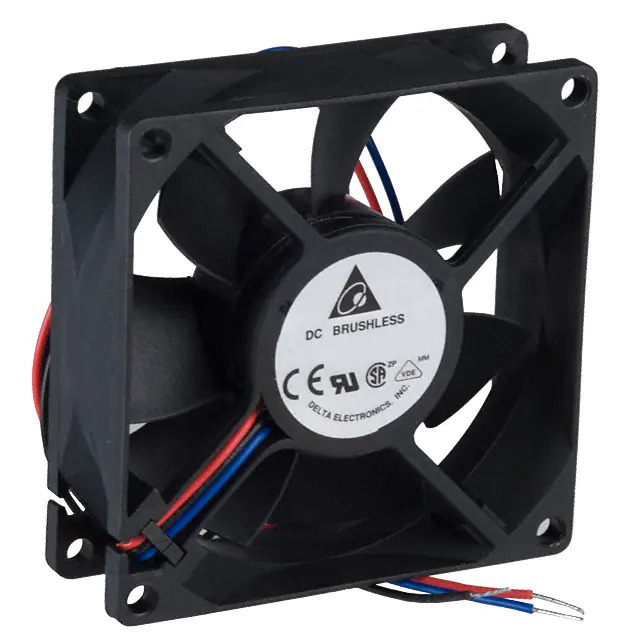

Part No AFB0824SH-R00
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 80X25.4MM 24VDC WIRE
Datasheet
AFB0824SH-R00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Box
Product Status Not For New Designs
Voltage - Rated 24VDC
Size / Dimension Square - 80mm L x 80mm H
Width 25.40mm
Air Flow 46.6 CFM (1.30m³/min)
Static Pressure 0.267 in H2O (66.5 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Sensor
Noise 40.0dB(A)
Power (Watts) 3.84 W
RPM 4000 RPM
Termination 3 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 140°F (-10 ~ 60°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.176 lb (80.00 g)
Current Rating (Amps) 0.160A
Voltage Range 14 ~ 26VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB0824
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368461-AFB0824SH-R00
Ultra Librarian 3D Model Ultra Librarian AFB0824SH-R00 CAD Model

Description

The Delta Electronics AFB0824SH-R00 is a DC brushless fan designed for thermal management in electronic devices.

  • Voltage Rating: 24VDC
  • Current Rating: 0.160A
  • Power Output: 3.84W
  • Feature: Locked rotor sensor, allowing for monitoring of the fan's rotational speed
  • Size: 80mm x 80mm
  • Airflow: 46.6 CFM
  • Static Pressure: 0.267 in H2O
  • Noise Level: 40.0dB(A)
  • Maximum Speed: 4000 RPM
  • Frame Material: Plastic
  • Blade Material: Plastic
  • Approvals: CE, CSA, UL, and VDE
  • Status: Not recommended for new designs
  • Suitable for: Reliable cooling performance for various electronic applications
