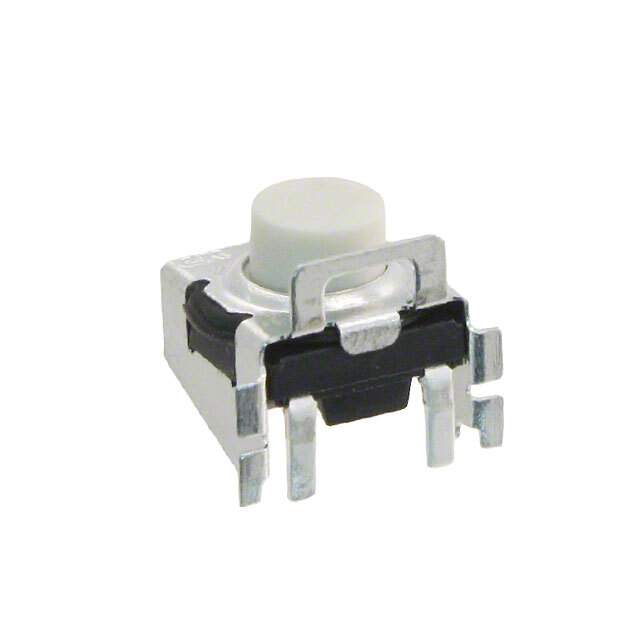

Same model may have multiple batches, images only for reference.

KT11P2SA1M34LFS

Name: KT11P2SA1M34LFS
Brand: C&K Components
SKU: 1232950
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	KT11P2SA1M34LFS
Manufacturer	C&K Components
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 1VA 32V / Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
Datasheet	KT11P2SA1M34LFS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>Tactile Switches
Mfr	C&K
Series	KT
Package	Tape & Reel
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	1VA @ 32VAC/DC
Actuator Type	Standard
Mounting Type	Surface Mount, Right Angle
Actuator Orientation	Side Actuated
Termination Style	Gull Wing
Outline	7.77mm x 4.38mm
Illumination	Non-Illuminated
Operating Force	300gf
Ingress Protection	IP57 - Dust Protected, Waterproof
Features	Sealed
Temperature Range - Operating	-40°C ~ 90°C
Actuator Material	Polyamide (PA), Nylon
Mechanical Life	100,000 Cycles
Base Product Number	KT11P2
Other Names	KT11P2SA1M34 LFS,CKN10273TR,*KT11P2SA1M34LFS,2266-KT11P2SA1M34LFS,CKN10273DKR,YT1043550FP LFS,CKN10273CT
Standard Package	800
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9031
Win Source Part Number	1232950-KT11P2SA1M34LFS
Ultra Librarian 3D Model	Ultra Librarian KT11P2SA1M34LFS CAD Model

Description

The C&K KT11P2SA1M34LFS is a tactile switch.

Mounting: surface-mount, right-angle
Circuit: SPST-NO
Switch Function: Off-Mom
Operating Force: 300gf
Mechanical Life: 100,000 cycles
Actuator Material: polyamide (PA), nylon
Actuator Type: standard
Termination Style: gull-wing
Sealed: yes
Ingress Protection: IP57 (dust protected, waterproof)
Standard Package: 800
Packaging: tape and reel
Temperature Range: -40°C to 90°C
Dimensions: 7.77mm x 4.38mm
