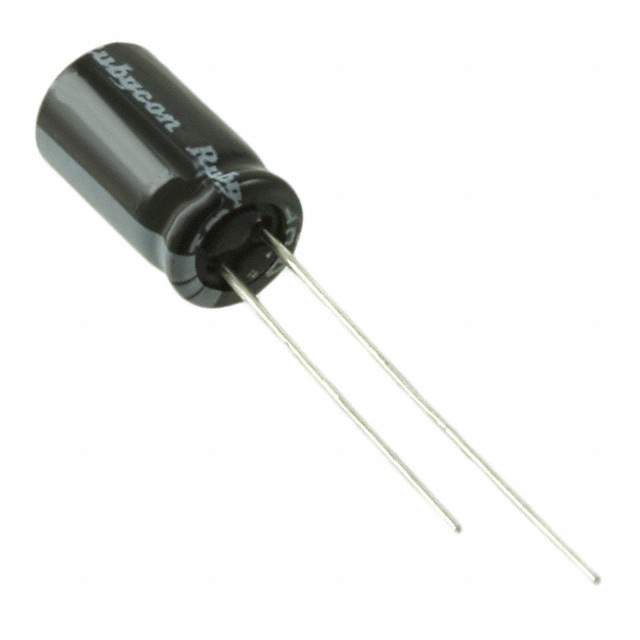

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Rubycon
Packaging Bulk
Status Active
Capacitance 680μF
Tolerance ±20%
Voltage Rating 6.3V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C to 85°C
Applications General Purpose
Ripple Current - Low Frequency 460mA @ 120Hz
Lead Spacing 0.098" (2.50mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Through Hole
Dimension Radial, Can
Win Source Part Number 1105201-6.3PK680MEFC6.3X11
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial, Automotive, Portable Devices, Communications & Networking, Power Management
Ultra Librarian 3D Model Ultra Librarian 6.3PK680MEFC6.3X11 CAD Model

Description

The Rubycon 1105201-6.3PK680MEFC6.3X11 is a through-hole capacitor with a capacitance of 680μF and a voltage rating of 6.3V.

  • Capacitance: 680μF
  • Voltage Rating: 6.3V
  • Tolerance: ±20%
  • Lead Spacing: 0.098" (2.50mm)
  • Ripple Current: 460mA @ 120Hz
  • Lifetime: 2000 hours @ 85°C
  • Status: Active
  • Temperature Range: -40°C to 85°C
  • Dimension: Radial, Can
  • Supply and Demand Status: balanced
  • Applications: Industrial, automotive, portable devices, communications & networking, and power management
