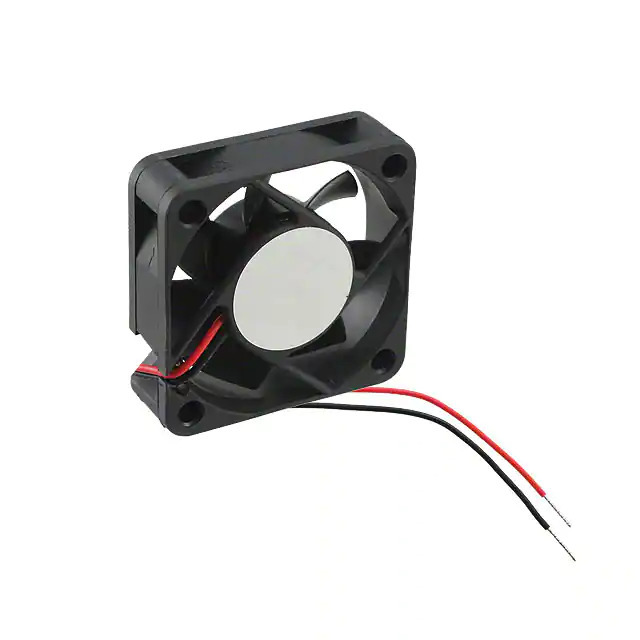

AFB0512HB Delta Electronics
Same model may have multiple batches, images only for reference.

AFB0512HB

Part No AFB0512HB
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 50X15MM 12VDC WIRE
Datasheet
AFB0512HB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Tray
Product Status Not For New Designs
Voltage - Rated 12VDC
Size / Dimension Square - 50mm L x 50mm H
Width 15.00mm
Air Flow 14.1 CFM (0.395m³/min)
Static Pressure 0.240 in H2O (59.8 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 32.0dB(A)
Power (Watts) 1.2 W
RPM 5600 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.071 lb (32.21 g)
Current Rating (Amps) 0.100A
Voltage Range 7 ~ 13.8VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB0512
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368438-AFB0512HB
Ultra Librarian 3D Model Ultra Librarian AFB0512HB CAD Model

Description

The AFB0512HB is a DC brushless fan manufactured by Delta Electronics.

  • Series: AFB
  • Designed for: Thermal management in electronic devices
  • Rated Voltage: 12VDC
  • Current Rating: 0.100A
  • Power Rating: 1.2W
  • Size: 50mm
  • Height: 50mm
  • Shape: Square
  • Bearing Type: Ball bearing
  • Noise Level: 32.0dB(A)
  • Maximum Speed: 5600 RPM
  • Air Flow: 14.1 CFM
  • Features: Locked Rotor Protection
  • Approvals: CE, CSA, UL, VDE
