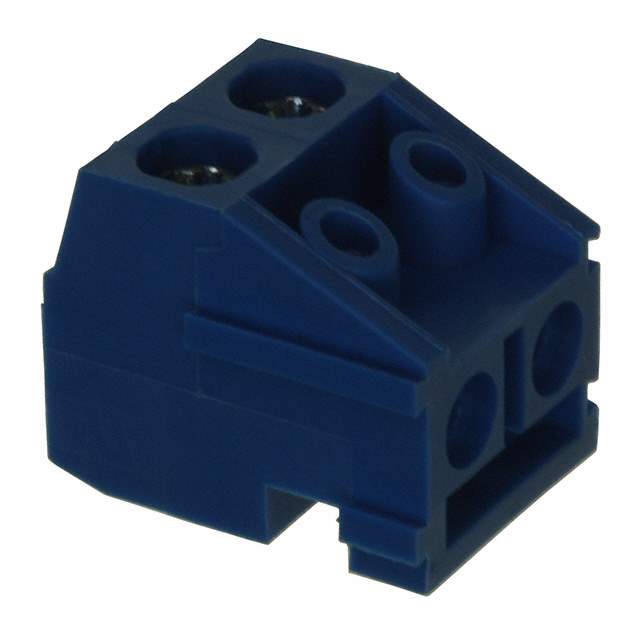

1776263-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks - Headers, Plugs and Sockets
Mfr TE Connectivity AMP Connectors
Series Buchanan
Package Bulk
Type Plug for Unshrouded Header
Number of Positions 2
Positions Per Level 2
Number of Levels 1
Pitch 0.197" (5.00mm)
Plug Wire Entry 90°
Termination Style Screw - Rising Cage Clamp
Mounting Type Free Hanging (In-Line)
Current - UL 10 A
Voltage - UL 300 V
Wire Gauge or Range - AWG 16-24 AWG
Wire Gauge or Range - mm2 0.2-1.4mm²
Color Blue
Temperature Range - Operating -40°C ~ 105°C
Contact Mating Finish Tin
Features Interlocking (Side)
Screw Size M2.6
Torque - Screw 0.34 Nm (3.0 Lb-In)
Contact Material Brass
Insulation Height 0.433" (11.00mm)
Base Product Number 1776263
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.8000
Other Names 17762632,-1776263-2-SI,A98028
Standard Package 1,000
Win Source Part Number 1036200-1776263-2
Ultra Librarian 3D Model Ultra Librarian 1776263-2 CAD Model

Description

The TE Connectivity AMP Connectors 1776263-2 is a plug for an unshrouded header used in various applications.

  • Series: Buchanan
  • Color: Blue
  • Termination Style: Screw-Rising Cage Clamp
  • Wire Gauge/Range: 16-24 AWG
  • Current Rating: 10A
  • Voltage Rating: 300V
  • Pitch: 0.197" (5.00mm)
  • Wire Entry: 90-Degree Plug
  • Win Source Part Number: 1036200-1776263-2
  • Packaging: Bulk
