Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Delta Electronics/Components
Packaging Tape and Reel
Type Wirewound
Material - Core Ferrite
Inductance 2.7μH
Tolerance ±5%
Current Rating (Amps) 320mA
Shielding Unshielded
DC Resistance (DCR) 1.2Ohm
Q at Freq 15 at 7.96MHz
Frequency - Self Resonant 70MHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 7.96MHz
Mounting Style SMD
Manufacturer Package 0805
Supplier Device Package 0805
Parts Dimension 0.090" L x 0.067" W (2.29mm x 1.71mm)
Height - Seated (Maximum) 0.057" (1.45mm)
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Win Source Part Number 147244-0805CS-272EJFS
Popularity Low
Supply and Demand Status Balance
Family Name 0805CS
Introduction Date July 20, 2001
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 0805CS-272EJFS CAD Model

Description

Overview

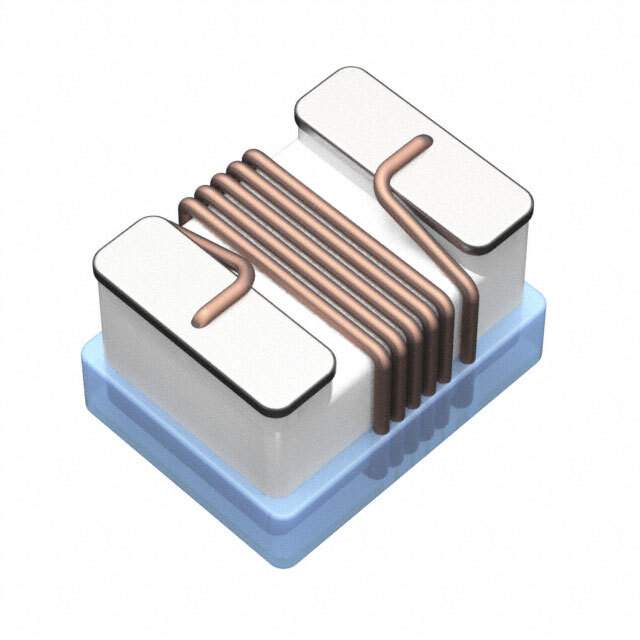

The 0805CS-272EJFS is a versatile surface-mount inductor designed to deliver exceptional performance in a compact form factor. It excels in environments requiring precision and efficiency.

Features and Benefits

  • Small 0805 footprint for intricate circuit designs.
  • Optimal inductance stability under varying current loads.
  • Reduced electromagnetic interference.
  • High reliability for long-term application use.

Applications

  • Signal filtering circuits
  • Switch-mode power supplies
  • Mobile communication devices
  • Compact electronic modules

Additional Details: Engineered with robust construction to withstand mechanical stresses, this inductor is perfect for use in detailed manufacturing processes requiring high precision.
