Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Siliconix
Packaging Bulk
Status Obsolete
Transistor Polarity N-Channel
Voltage - Breakdown (V(BR)GSS) 40V
Current - Drain (Idss) at Vds (Vgs=0) 30μA at 10V
Voltage - Cutoff (VGS off) at Id 600mV at 1nA
Input Capacitance (Ciss) (Maximum) at Vds 3pF at 10V
Maximum Power 300mW
Temperature Range - Operating -55°C ~ 175°C
Mounting Style Through Hole

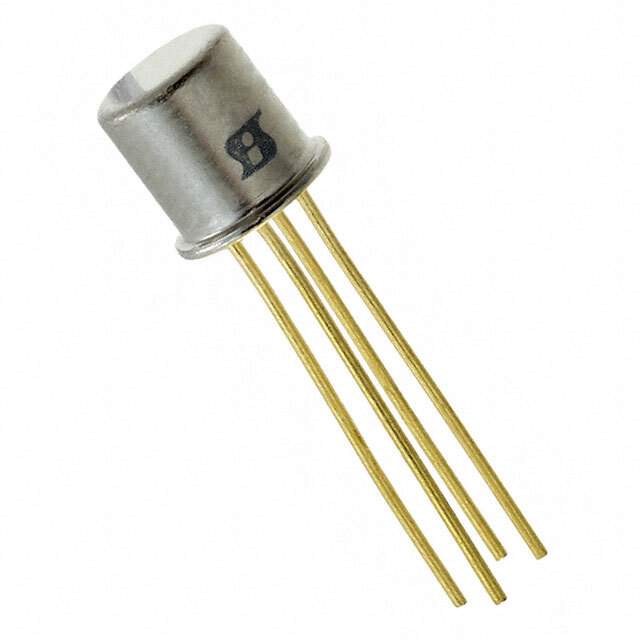

Manufacturer Package TO-206AF, TO-72-4 Metal Can
Supplier Device Package TO-206AF (TO-72)
Manufacturer Pack Quantity 200
MSL Level 1 (Unlimited)
Win Source Part Number 153053-2N4117A
Popularity Low
Supply and Demand Status Balance
Family Name 2N4117A
Introduction Date June 05, 2001
Country of Origin Philippines
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian 2N4117A CAD Model

Description

2N4117A from Vishay is a legacy semiconductor component commonly referenced in maintenance, repair, and continuity-driven procurement environments where established designs still rely on original part numbers. It is typically relevant for engineers supporting existing analog or discrete semiconductor circuits, especially when design stability, form-fit-function alignment, or field replacement needs are more important than redesign. In the HOT - SALES and EOL Components category, this part is positioned for buyers managing hard-to-find demand, buffer stock planning, and ongoing support for mature equipment platforms. Lifecycle status for 2N4117A is currently information not available, so teams should treat it with caution in long-term programs and verify factory status directly with Vishay or authorized documentation before committing to production. RoHS compliance information is also not available in the provided data. Engineers and procurement teams should confirm environmental compliance, material declarations, and any export or customer-specific requirements through the latest manufacturer datasheet or formal compliance statement.
