Same model may have multiple batches, images only for reference.

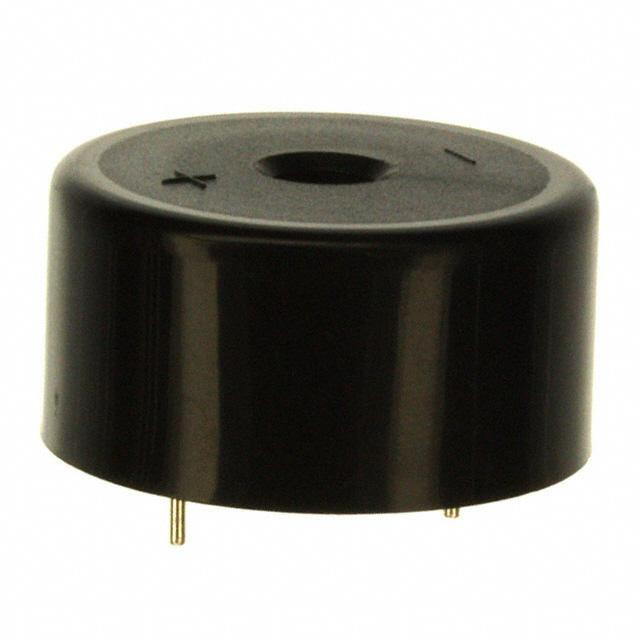

CEP-2272A CUI Inc.
Same model may have multiple batches, images only for reference.

CEP-2272A

Part No CEP-2272A
Manufacturer CUI Inc.
Catalog Alarms, Buzzers, and Sirens
Description AUDIO PIEZO INDICATOR 3-20V TH / Audio Indicator Piezo 3VDC 20VDC 10mA 12VDC 93dB 3000Hz to 4000Hz Through Hole Pin
Datasheet
CEP-2272A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Manufacturer CUI Inc.
Series CEP
Packaging Bulk
Driver Circuitry Indicator, Internally Driven
Input Type DC
Voltage Rating DC 12V
Voltage Range 3 ~ 20V
Frequency 3.5kHz
Technology Piezo
Operating Mode Single Tone
Sound Pressure Level (SPL) 93dB @ 12V, 30cm
Operating Supply Current 10mA
Port Location Top
Operating Temperature Range -30°C ~ 85°C
Mounting Style Through Hole
Termination PC Pins
Dimension 1.232" Dia (31.30mm)
Height - Seated (Maximum) 0.650" (16.50mm)
Win Source Part Number 791121-CEP-2272A
Popularity Medium
Supply and Demand Status Limited
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian CEP-2272A CAD Model

Description

The CEP-2272A piezo audio product is manufactured by CUI Inc.

  • Series: CEP
  • Termination Style: Through Hole, PC Pins
  • Operating Temperature: -30°C ~ 85°C
  • Frequency: 3.5kHz
  • Input Type: DC
  • Operating Mode: Single Tone
  • Voltage Range: 3 ~ 20V
  • Sound Pressure Level (SPL): 93dB @ 12V, 30cm
  • Diameter: 1.232" (31.30mm)
  • Height: 0.650" (16.50mm)
  • Voltage Rating DC: 12V
  • ECCN: EAR99
  • Popularity: Medium
  • Supply/Demand: Limited
  • EOL Date: 2029
