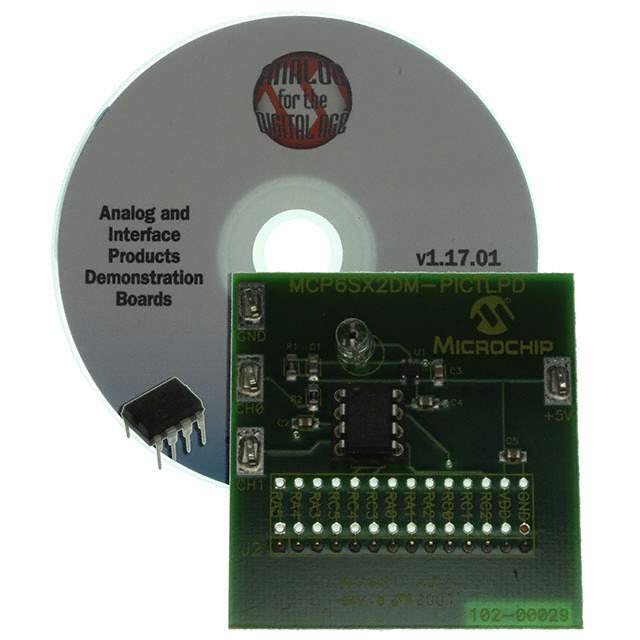

The MCP6SX2DM-PCTLPD from Microchip Technology is a demonstration board designed to showcase the capabilities of the MCP6SX2 operational amplifier (op-amp) family. This product provides an excellent platform for engineers and developers to evaluate the performance of the MCP6S22 and MCP6S92 programmable gain amplifiers (PGAs) in various applications.

Key Features

• Programmable Gain Amplifiers: Includes MCP6S22 and MCP6S92, which offer 1, 2, 4, 5, 8, 10, 16, and 32 V/V gains.
• Multiple Input Channels: Features two external inputs for the MCP6S22 and a single input for the MCP6S92.
• SPI Interface: Equipped with a Serial Peripheral Interface for easy communication with most microcontrollers.
• Flexibility: The board is designed to operate in different modes, allowing users to test the PGAs in a variety of signal conditioning roles.
• On-board PIC Microcontroller: Comes with a pre-programmed PIC microcontroller to facilitate easy demonstration and testing.

Applications

The MCP6SX2DM-PCTLPD is ideal for a range of applications, including but not limited to:

• Automotive sensor interfaces
• Portable instrumentation
• Medical monitoring devices
• Industrial process controls
• Analog signal conditioning

Design and Development Support

Microchip Technology provides extensive support for the MCP6SX2DM-PCTLPD demonstration board, including technical documentation, application notes, and software tools. This ensures that developers can quickly integrate the board into their projects and begin testing with minimal setup time.

Quality and Reliability

As with all Microchip products, the MCP6SX2DM-PCTLPD is built to high-quality standards, ensuring reliable performance in a wide range of operating conditions. This demonstration board is a testament to Microchip's commitment to providing innovative solutions that meet the needs of modern electronics design.
