Same model may have multiple batches, images only for reference.

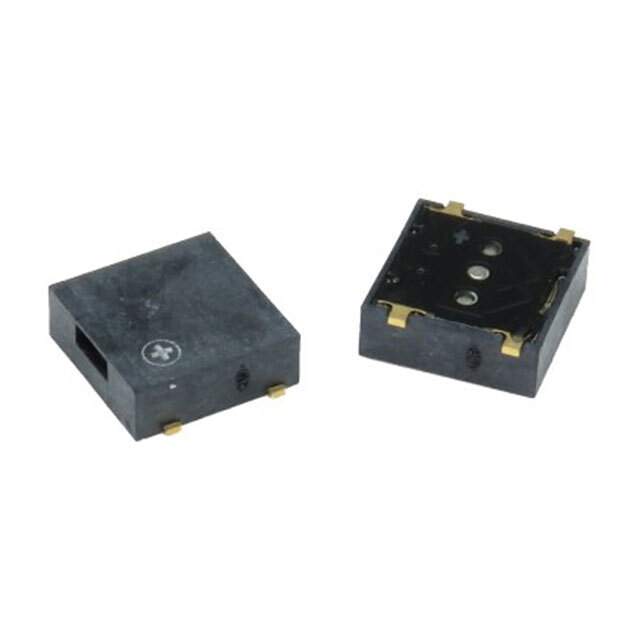

TE102803-1 Real Image
Same model may have multiple batches, images only for reference.

TE102803-1

Part No TE102803-1
Manufacturer DB Unlimited.
Catalog Audio Accessories
Description BUZZER ELECTRO 3.6V 10X10MM SMD  /  Buzzers Transducer, Externally Driven Electromechanical 3.6 V 100mA 2.83kHz 93dB @ 3.6V, 10cm Surface Mount Solder Pads
Datasheet
TE102803-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products>Alarms, Buzzers, and Sirens
Mfr DB Unlimited
Package Tape & Reel
Driver Circuitry Transducer, Externally Driven
Input Type Zero-Peak Signal
Voltage - Rated 3.6 V
Voltage Range 3 ~ 4.5V
Frequency 2.83kHz
Technology Electromechanical
Sound Pressure Level (SPL) 93dB @ 3.6V, 10cm
Current - Supply 100mA
Port Location Side
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Termination Solder Pads
Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.146" (3.70mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.80.9041
Other Names 2104-TE102803-1TR,2104-TE102803-1DKR,2104-TE102803-1CT
Standard Package 1,000
Win Source Part Number 1106983-TE102803-1
Ultra Librarian 3D Model Ultra Librarian TE102803-1 CAD Model

Description

The DB Unlimited TE102803-1 is an audio product that is used in alarms, buzzers, and sirens.

  • Manufacturer: DB Unlimited
  • Win Source Part Number: 1106983-TE102803-1
  • Frequency: 2.83kHz
  • Sound Pressure Level: 93dB @ 3.6V and 10cm
  • Voltage Range: 3 ~ 4.5V
  • Current Supply: 100mA
  • Signal Input Type: Zero-Peak
  • Transducer Drive: Externally Driven
  • Termination: Solder Pads
  • Package: Tape & Reel
  • Height: 0.146" (3.70mm)
  • Dimensions: 0.394" L x 0.394" W (10.00mm x 10.00mm)
  • Operating Temperature: -20°C ~ 70°C
  • Mounting: SMD (SMT)
