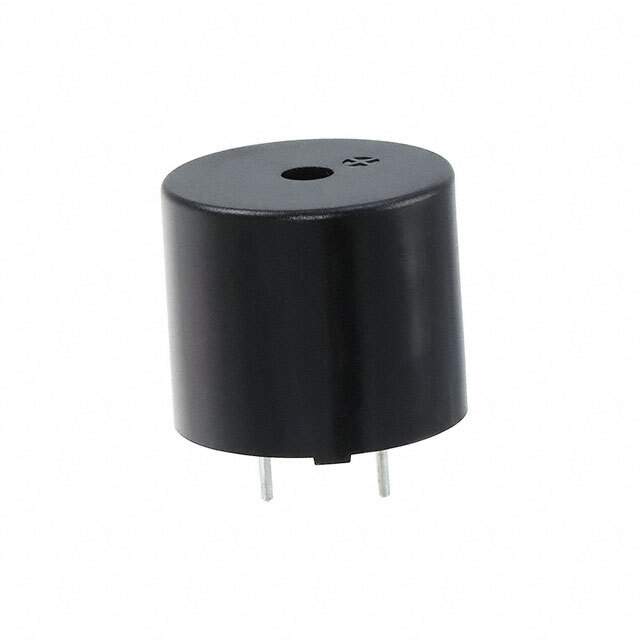

SD1614T5-B5M Real Image
Same model may have multiple batches, images only for reference.

SD1614T5-B5M

Part No SD1614T5-B5M
Manufacturer TDK Corporation
Catalog Alarms, Buzzers, and Sirens
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products>Alarms, Buzzers, and Sirens
Mfr TDK Corporation
Series SD
Package Tray
Product Status Not For New Designs
Driver Circuitry Transducer, Externally Driven
Input Type Zero-Peak Signal
Voltage - Rated 5 V
Voltage Range 3 ~ 6V
Frequency 2.048kHz
Technology Magnetic
Operating Mode Single Tone
Sound Pressure Level (SPL) 85dB @ 5V, 10cm
Current - Supply 80mA
Port Location Top
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Termination PC Pins
Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 0.551" (14.00mm)
Other Names 445-172996
Standard Package 480
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8531.80.9041
Win Source Part Number 1314321-SD1614T5-B5M
Ultra Librarian 3D Model Ultra Librarian SD1614T5-B5M CAD Model

Description

The SD1614T5-B5M is a magnetic audio product from TDK Corporation that is designed for use in alarms, buzzers, and sirens. TDK Corporation manufactures this.

  • Rated Voltage: 5 V
  • Tone: Single
  • Sound Pressure Level: 85 dB @ 5 V and 10 cm
  • Operating Mode: Zero-peak signal
  • Voltage Range: 3 ~ 6V
  • Driver Circuitry: Transducer, externally driven
  • Mounting: Through hole
  • Temperature Range: -40°C to 85°C
  • Status: Not for new designs
  • Dimension: 0.630" Dia (16.00mm)
  • Termination: PC pins
