Same model may have multiple batches, images only for reference.

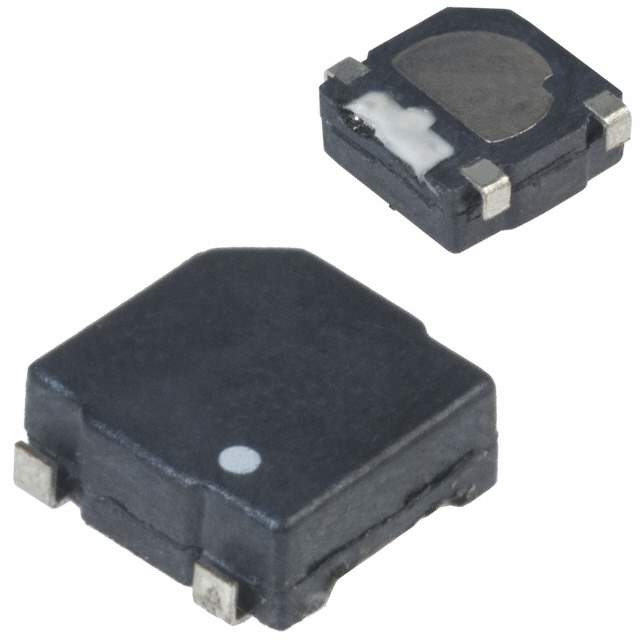

SMT-0540-S-R Real Image
Same model may have multiple batches, images only for reference.

SMT-0540-S-R

Part No SMT-0540-S-R
Manufacturer PUI Audio, Inc.
Catalog Audio Accessories
Description BUZZER MAGNETIC 3V 5X5MM SMD / Buzzers Transducer, Externally Driven Electromechanical/Magnetic 3 V 100mA 4kHz 78dB @ 3V, 10cm Surface Mount Solder Pads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products>Alarms, Buzzers, and Sirens
Mfr PUI Audio, Inc.
Series SMT
Package Tape & Reel
Driver Circuitry Transducer, Externally Driven
Input Type Zero-Peak Signal
Voltage - Rated 3 V
Voltage Range 2 ~ 4V
Frequency 4kHz
Technology Electromechanical/Magnetic
Operating Mode Single Tone
Sound Pressure Level (SPL) 78dB @ 3V, 10cm
Current - Supply 100mA
Port Location Side
Temperature Range - Operating -30°C ~ 70°C
Mounting SMD (SMT)
Termination Solder Pads
Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.083" (2.10mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8531.80.9041
Other Names 668-1060-1,668-1060-2,668-1060-6,Q9459804,SMT0540SR
Standard Package 2,000
Win Source Part Number 1080736-SMT-0540-S-R
Ultra Librarian 3D Model Ultra Librarian SMT-0540-S-R CAD Model

Description

The SMT-0540-S-R is an electromechanical/magnetic buzzer from PUI Audio, Inc.

  • Frequency: 4kHz
  • Sound Pressure Level: 78dB @ 3V and 10cm
  • Voltage Range: 2V to 4V
  • Current Supply: 100mA
  • Duration: Single Tone
  • Input Type: Zero-Peak Signal
  • Port Location: Side
  • Mounting: SMD (SMT) Solder Pads
  • Package: Tape and Reel
  • Height: 0.083 inches
  • Operating Temperature: -30°C to 70°C
  • Dimension: 0.197 inches x 0.197 inches
