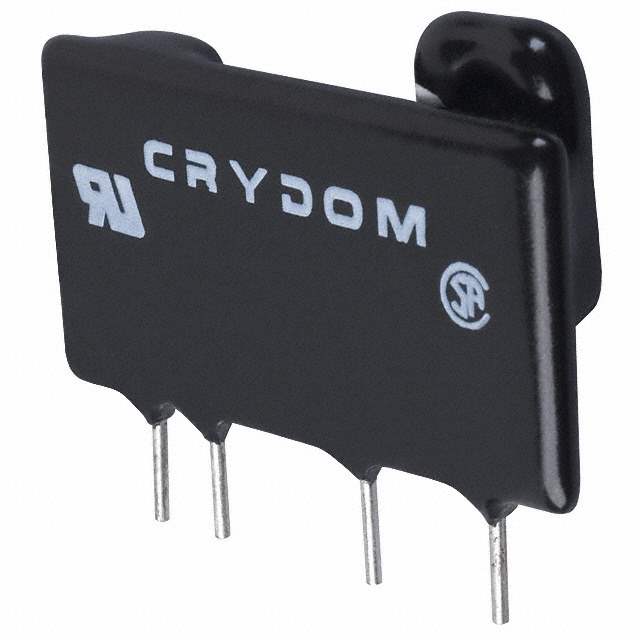

DMP6301A Real Image
Same model may have multiple batches, images only for reference.

DMP6301A

Part No DMP6301A
Manufacturer Crydom Co.
Catalog I/O Relay Modules - Output
Description OUTPUT MODULE DC SIP 5VDC
Datasheet
DMP6301A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Crydom Co.
Status Obsolete(EOL)
Type DC
Color Black
Style SIP
Voltage - Input 5VDC (3 to 6VDC)
Output Voltage 3 to 60VDC
Output Current 0.02 to 3A
Turn On Time 0.50ms
Turn Off Time 0.50ms
Features Epoxy Coated
Win Source Part Number 118598-DMP6301A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DMP6301A CAD Model

Description

Overview

The DMP6301A is a high-quality component designed for demanding electronic environments. Its advanced specifications ensure optimal performance across various applications.

Features and Benefits

  • High current capability for extensive applications
  • Durable build for extended longevity
  • Minimal power loss for improved efficiency

Applications

  • Automotive electronics
  • Industrial control systems
  • Home automation devices
  • Robust power supply units

The DMP6301A is engineered to meet the rigorous demands of modern electronic projects, ensuring reliability and efficiency.
