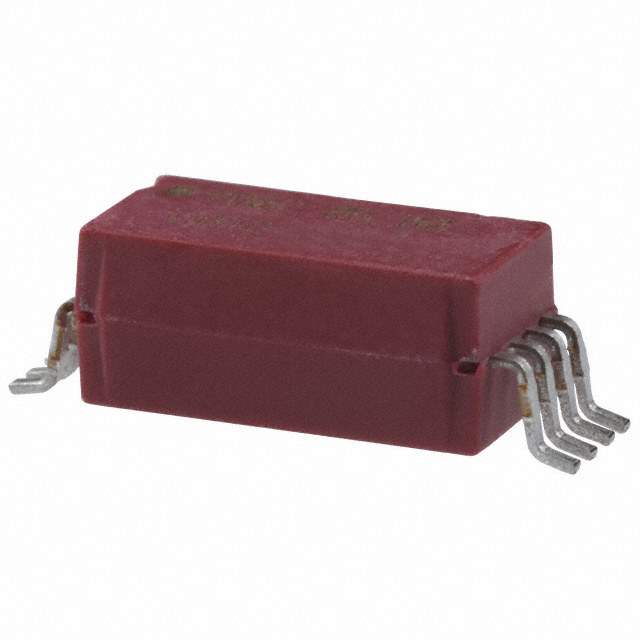

9802-05-00 Real Image 9802-05-00 Coto Technology 9802-05-00 Coto Technology
Same model may have multiple batches, images only for reference.
9802-05-00 Real Image 9802-05-00 Coto Technology 9802-05-00 Coto Technology
9802-05-00 Real Image 9802-05-00 Coto Technology 9802-05-00 Coto Technology
Same model may have multiple batches, images only for reference.

9802-05-00

Part No 9802-05-00
Manufacturer Coto Technology
Catalog High Frequency (RF) Relays
Description RELAY RF SPST-NO 250MA 5V
Datasheet
9802-05-00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 30000056-9802-05-00
Manufacturer Coto Technology
Category Relays --High Frequency (RF) Relays
Series 9800
Features Magnetic Shield
Package Bulk
Product Status Obsolete
Mounting Type Surface Mount
Coil Resistance 150 Ohms
Coil Current 33.3 mA
Coil Voltage 5VDC
Contact Rating (Current) 250 mA
Ultra Librarian 3D Model Ultra Librarian 9802-05-00 CAD Model

Description

The 9800 series is a high-frequency relay manufactured by Coto Technology.

  • Frequency: High-Frequency
  • Shielding: Magnetic Shield
  • Coil Resistance: 150 ohms
  • Coil Current: 33.3mA
  • Contact Rating: 250mA
  • Mounting Type: Surface Mount
  • Lifecycle Status: Obsolete - Not for New Designs
