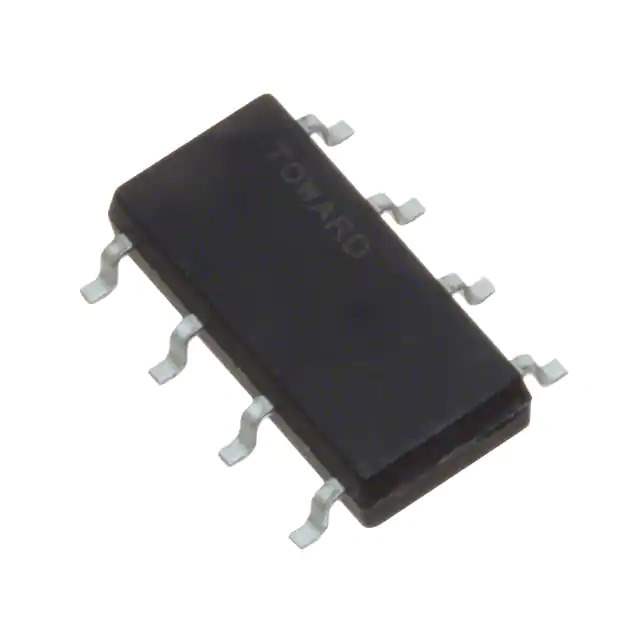

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Comus International
Series 30
Package Tube
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A) x 2
Output Type AC, DC
Voltage - Input 1.17VDC
Voltage - Load 0 V ~ 400 V
Load Current 100 mA
On-State Resistance (Max) 30 Ohms
Termination Style Gull Wing
Package / Case 8-SMD (0.300", 7.62mm)
Supplier Device Package 8-SMD
Base Product Number AC30
Standard Package 45 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.49.0055
Win Source Part Number 859215-AC30F
Ultra Librarian 3D Model Ultra Librarian AC30F CAD Model

Description

The 859215-AC30F solid state relay is a high-quality electronic component manufactured by Comus International.

  • Series: 30 series of solid state relays
  • Termination Style: Gull wing termination style
  • Circuit: Double-pole, single-throw (SPST-NO)
  • On-State Resistance: 30 Ohms
  • Voltage Input: 1.17VDC
  • Output Types: AC and DC
  • Load Current: 100mA
  • Voltage Load Range: 0V to 400V
  • Mounting: Surface mountable
  • Standard Package: 45 pieces
  • Product Status: Active
  • Applications: Various relay applications
