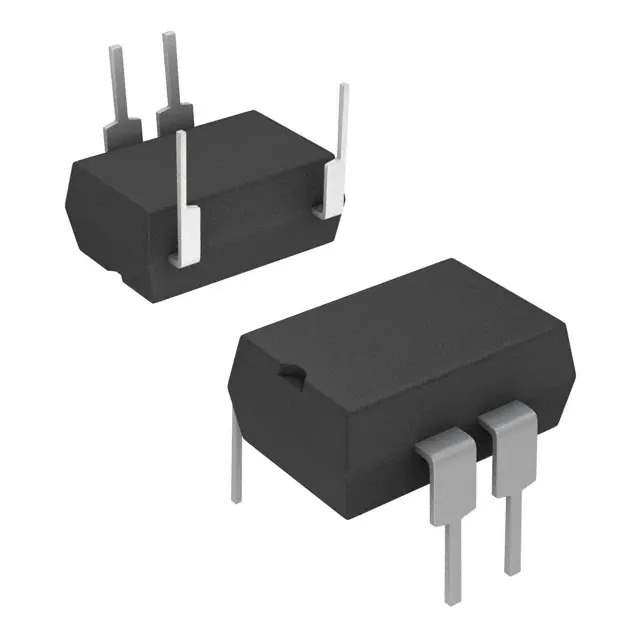

PVDZ172NPBF Real Image
Same model may have multiple batches, images only for reference.

PVDZ172NPBF

Part No PVDZ172NPBF
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description SSR RELAY SPST-NO 1.5A 0-60V / Solid State SPST-NO (1 Form A) 8-DIP (0.300", 7.62mm), 4 Leads
Datasheet
PVDZ172NPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Infineon Technologies
Series PVD, HEXFET®
Package Tube
Product Status Active
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 60 V
Load Current 1.5 A
On-State Resistance (Max) 250 mOhms
Termination Style PC Pin
Package / Case 8-DIP (0.300", 7.62mm), 4 Leads
Supplier Device Package 8-DIP Modified
Base Product Number PVDZ172
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 658162-PVDZ172NPBF
Ultra Librarian 3D Model Ultra Librarian PVDZ172NPBF CAD Model

Description

The PVDZ172NPBF is a solid-state relay from Infineon Technologies. It is part of the PVD, HEXFET™ series.

  • Series: PVD, HEXFET™
  • Termination Style: PC Pin
  • Package: Tube
  • Standard Package Quantity: 50 pieces
  • Input Voltage: 1.2VDC
  • Output Type: DC
  • Circuit: SPST-NO
  • On-State Resistance: 250 mOhms
  • Load Current: 1.5A
  • Load Voltage Range: 0V to 60V
  • Mounting Type: Through-Hole
  • Status: Active
