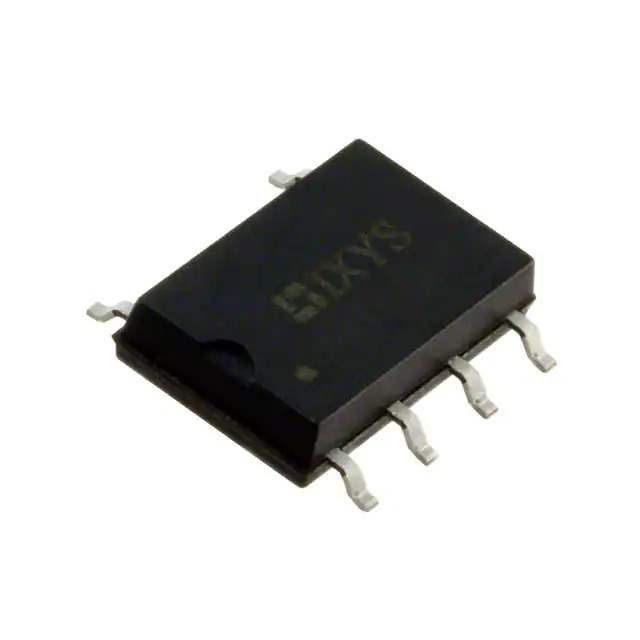

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr IXYS
Series PLA, OptoMOS®
Package Tube
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 800 V
Load Current 100 mA
On-State Resistance (Max) 50 Ohms
Termination Style Gull Wing
Package / Case 8-SMD (0.300", 7.62mm), 6 Leads
Supplier Device Package 6-Flatpack
Base Product Number PLA172
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
California Prop 65 Warning Information
Win Source Part Number 930695-PLA172P
Ultra Librarian 3D Model Ultra Librarian PLA172P CAD Model

Description

The 930695-PLA172P is a solid state relay from the PLA series by IXYS.

  • Termination Style: Gull Wing
  • Package: 8-SMD package with 6 leads
  • Voltage Input: 1.2VDC
  • Output Type: AC and DC
  • Circuit: SPST-NO (1 Form A)
  • On-State Resistance: 50 Ohms
  • Load Current: 100 mA
  • Voltage Load Range: 0 V to 800 V
  • Mounting: Surface Mount
  • Status: Active
  • REACH: Unaffected
  • MSL Level: 1 (unlimited floor life)
  • ECCN: EAR99
  • HTSUS Code: 8536.41.0030
