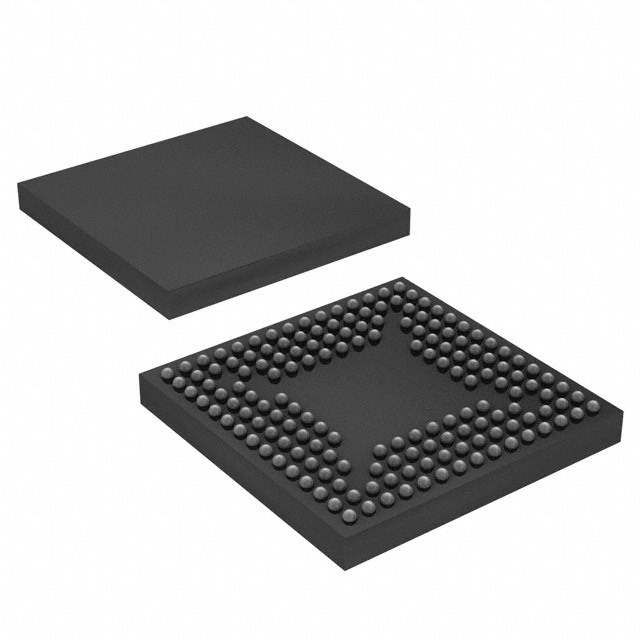

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Altera
Status Active
Number of LABs/CLBs 321
Number of Logic Elements/Cells 5136
Total RAM Bits 423936
Number of I/O 106
Supply Voltage - Operating 1.15 V to 1.25 V
Mounting SMD (SMT)
Temperature Range - Operating 0°C to 85°C (TJ)
Case / Package 164-MBGA (8x8)
Win Source Part Number 203771-EP3C5M164C8N
Family Name EP3C5
Introduction Date March 01, 2007
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EP3C5M164C8N CAD Model

Description

EP3C5M164C8N

The EP3C5M164C8N FPGA from Altera Cyclone III series provides an ideal solution for applications demanding moderate logic density and low power utilization. Its optimized architecture ensures versatility and expanded design possibilities.

Features and Benefits

  • Advanced 65 nm processing for reduced power usage.
  • 164-pin MBGA package promoting compact designs.
  • Embedded memory for enhanced data storage and throughput.
  • Extensive I/O options for greater design flexibility.
  • High-performance DSPs tailored to real-time data processing.

Applications/Projects

  • Portable medical devices.
  • Telecommunications infrastructure.
  • Digital signal processing systems.
  • Home automation solutions.
