Same model may have multiple batches, images only for reference.

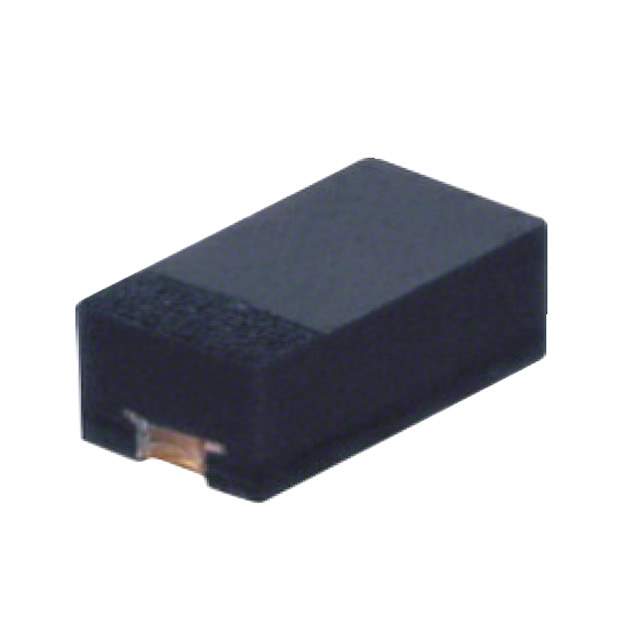

CDSUR4148-HF Real Image
Same model may have multiple batches, images only for reference.

CDSUR4148-HF

Part No CDSUR4148-HF
Manufacturer Comchip Technology
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 75V 150MA 0603 / Diode Standard 75 V 150mA Surface Mount 0603/SOD-523F
Datasheet
CDSUR4148-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Comchip Technology
Package Tape & Reel (TR)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 75 V
Current - Average Rectified (Io) 150mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 50 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 4 ns
Current - Reverse Leakage @ Vr 2.5 µA @ 75 V
Capacitance @ Vr, F 4pF @ 0V, 1MHz
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Supplier Device Package 0603/SOD-523F
Operating Temperature - Junction 125°C (Max)
Base Product Number CDSUR4148
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Standard Package 4,000
Win Source Part Number 994227-CDSUR4148-HF
Ultra Librarian 3D Model Ultra Librarian CDSUR4148-HF CAD Model

Description

The Comchip Technology CDSUR4148-HF is a standard rectifier diode with a maximum reverse voltage of 75V and a current rating of 150mA.

  • Maximum Reverse Voltage: 75V
  • Current Rating: 150mA
  • Forward Voltage: 1V @ 50mA
  • Reverse Recovery Time: 4ns
  • Mounting Technology: SMD (SMT)
  • Package: 0603/SOD-523F
  • Popularity: Medium
  • REACH Impact: No
  • Operating Temperature: 125°C (Max)
