Same model may have multiple batches, images only for reference.

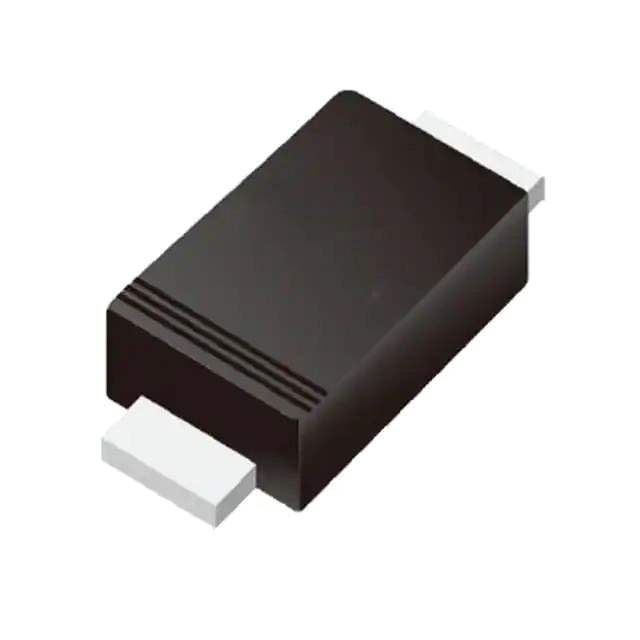

DSK36 Real Image
Same model may have multiple batches, images only for reference.

DSK36

Part No DSK36
Manufacturer MDD
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 60V 3A SOD123FL
Datasheet
DSK36 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SOD-123FL
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 700 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 300 µA @ 60 V
Capacitance @ Vr, F 160pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-123F
Supplier Device Package SOD-123FL
Operating Temperature - Junction -55°C ~ 125°C
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 587189-DSK36
Ultra Librarian 3D Model Ultra Librarian DSK36 CAD Model

Description

The 587189-DSK36 is a high-current Schottky diode from the SOD-123FL series.

  • Recovery Time: less than 500ns
  • Maximum Reverse Voltage: 60V
  • Average Rectified Current: 3A
  • Forward Voltage: 700mV @ 3A
  • Reverse Leakage Current: 300µA @ the maximum reverse voltage
  • Capacitance: 160pF @ 4V and 1MHz
  • Operating Temperature Range: -55°C to 125°C
  • Package Type: SOD-123F
  • Mounting: Surface mountable
  • Standard Package: 6,000 pieces
  • Supplier: MDD
