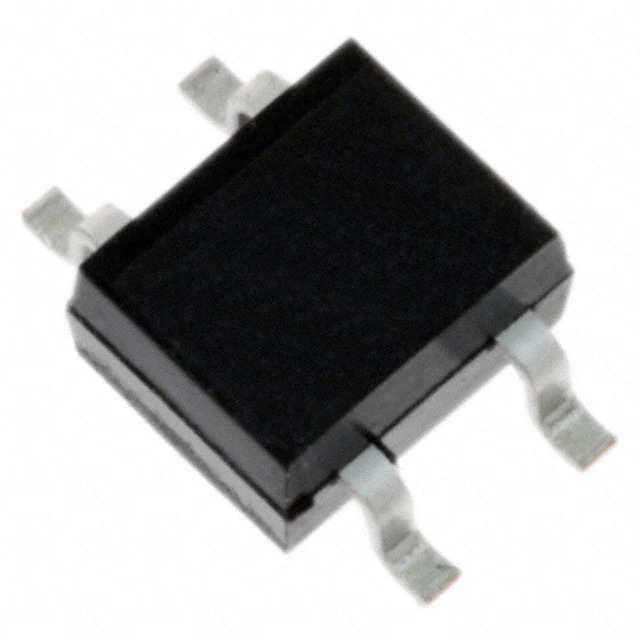

Same model may have multiple batches, images only for reference.
B10S-HF Comchip Technology
Same model may have multiple batches, images only for reference.

B10S-HF

Part No B10S-HF
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 1KV 800MA MBS
Datasheet
B10S-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Comchip Technology
Series -
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 800 mA
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 800 mA
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-269AA, 4-BESOP
Supplier Device Package MBS
Base Product Number B10S
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367756-B10S-HF
Ultra Librarian 3D Model Ultra Librarian B10S-HF CAD Model

Description

The 1367756-B10S-HF is a single-phase bridge rectifier diode from Comchip Technology.

  • Average Rectified Current: 800mA
  • Forward Voltage: 1.1V @ 800mA
  • Peak Reverse Voltage: 1kV
  • Package: Surface Mount TO-269AA
  • Operating Temperature: -55°C to 150°C
