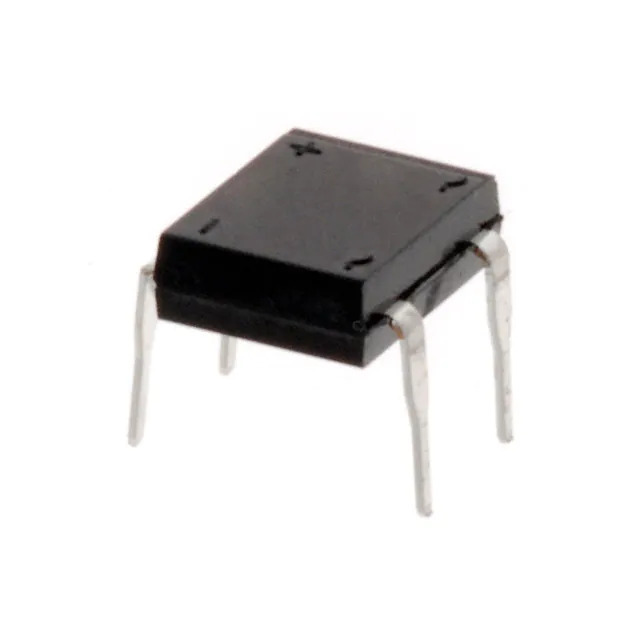

Part No EDF1DM-E3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 200V 1A DFM
Datasheet
EDF1DM-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Vishay General Semiconductor - Diodes Division
Series -
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 200 V
Current - Average Rectified (Io) 1 A
Voltage - Forward (Vf) (Max) @ If 1.05 V @ 1 A
Current - Reverse Leakage @ Vr 5 µA @ 200 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-EDIP (0.300", 7.62mm)
Supplier Device Package DFM
Base Product Number EDF1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1368049-EDF1DM-E3/45
Ultra Librarian 3D Model Ultra Librarian EDF1DM-E3/45 CAD Model

Description

The EDF1DM-E3/45 is a bridge rectifier diode manufactured by Vishay General Semiconductor - Diodes Division. It is part of the EDF1 series and is designed for through-hole mounting.

  • Forward Voltage: 1.05V @ 1A
  • Reverse Leakage Current: 5μA @ 200V
  • Peak Reverse Voltage: 200V
  • Application: Single-Phase
  • Average Rectified Current: 1A
  • Operating Temperature: -55°C to 150°C
  • Package: 4-EDIP
  • Packaging: Tube
  • Product Status: Active
  • REACH Status: Unaffected
