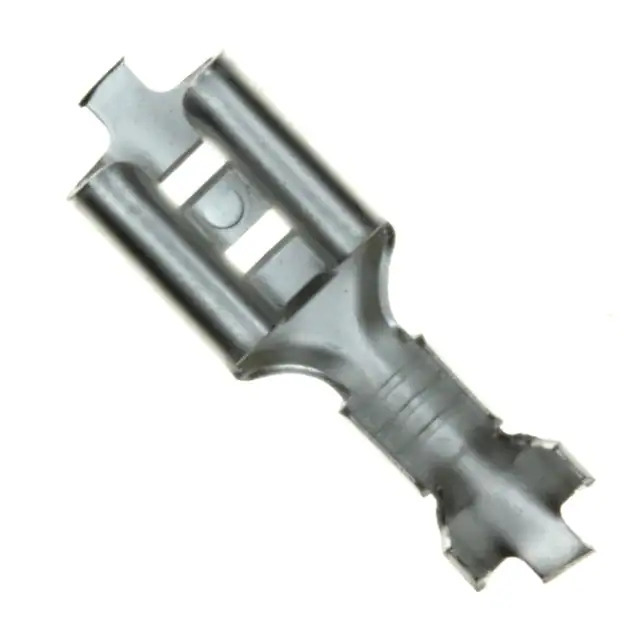

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.020" (0.51mm)
Tab Length 0.250" (6.35mm)
Length - Overall 0.633" (16.08mm)
Termination Crimp
Wire Gauge 16-20 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.090" ~ 0.130" (2.29mm ~ 3.30mm)
Base Product Number 42452
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1365014-42452-2
Ultra Librarian 3D Model Ultra Librarian 42452-2 CAD Model

Description

The 1365014-42452-2 is a quick connect, quick disconnect connector from TE Connectivity AMP Connectors.

  • Series: Faston
  • Base Product Number: 42452
  • Wire Gauge: 16-20 AWG
  • Contact Finish: Tin
  • Termination: Crimp
  • Mounting: Free hanging (in-line)
  • Overall Length: 0.633 inches (16.08mm)
  • Terminal Gender: Female
  • Terminal Type: Standard
  • Tab Width: 0.187 inches (4.75mm)
  • Tab Thickness: 0.020 inches (0.51mm)
  • Insulation Diameter: 0.090 inches to 0.130 inches (2.29mm to 3.30mm)
