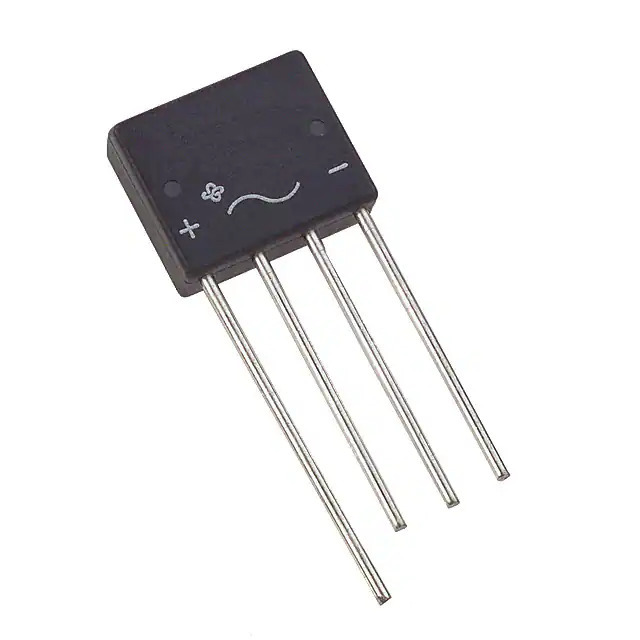

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Vishay General Semiconductor - Diodes Division
Series -
Package Bulk
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 100 V
Current - Average Rectified (Io) 4 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 4 A
Current - Reverse Leakage @ Vr 5 µA @ 100 V
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, KBL
Supplier Device Package KBL
Base Product Number KBL01
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1368088-KBL01-E4/51
Ultra Librarian 3D Model Ultra Librarian KBL01-E4/51 CAD Model

Description

The KBL01-E4/51 bridge rectifier diode is a reliable electronic component manufactured by Vishay General Semiconductor - Diodes Division.

  • Average Rectified Current: 4A
  • Voltage Forward Drop: 1.1V @ 4A
  • Current Reverse Leakage @ Vr: 5µA @ 100V
  • Package / Case: 4-SIP, KBL
  • Mounting Type: Through Hole
  • Voltage Peak Reverse: 100V
  • Temperature Range: -50°C to 150°C
  • Product Status: Active
