Same model may have multiple batches, images only for reference.

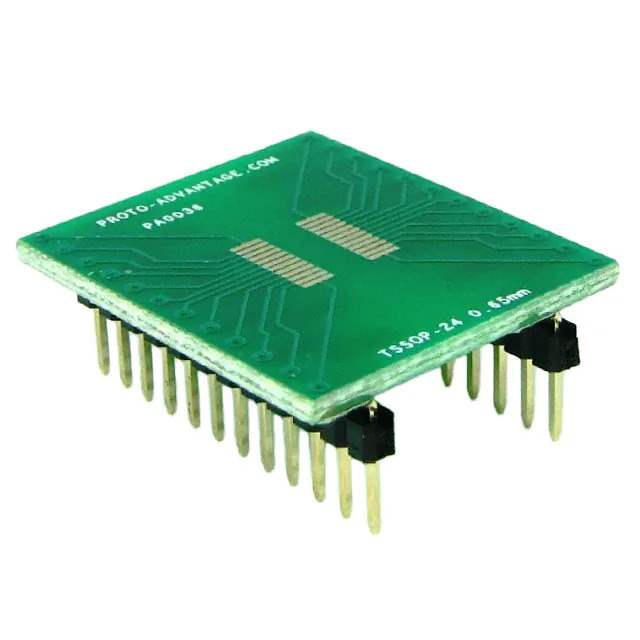

PA0036 Real Image
Same model may have multiple batches, images only for reference.

PA0036

Part No PA0036
Manufacturer Chip Quik Inc.
Catalog Unclassified
Description TSSOP-24 TO DIP-24 SMT ADAPTER
Datasheet
PA0036 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Prototyping, Fabrication Products - Adapter, Breakout Boards
Mfr Chip Quik Inc.
Series Proto-Advantage
Package Bulk
Product Status Active
Proto Board Type SMD to DIP
Package Accepted TSSOP
Number of Positions 24
Pitch 0.026" (0.65mm)
Board Thickness 0.062" (1.57mm) 1/16"
Material FR4 Epoxy Glass
Size / Dimension 0.700" x 1.200" (17.78mm x 30.48mm)
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 929927-PA0036
Ultra Librarian 3D Model Ultra Librarian PA0036 CAD Model

Description

The Proto-Advantage Proto-Advantage 929927-PA0036 is a prototyping and fabrication product, specifically an adapter and breakout board.

  • Product Type: Adapter and Breakout Board
  • Positions: 24
  • Pitch: 0.026" (0.65mm)
  • Package Size: 0.700" x 1.200" (17.78mm x 30.48mm)
  • Board Thickness: 0.062" (1.57mm)
  • Material: FR4 Epoxy Glass
  • Compatibility: SMD to DIP applications
  • Accepts: TSSOP packages
  • Status: Active
