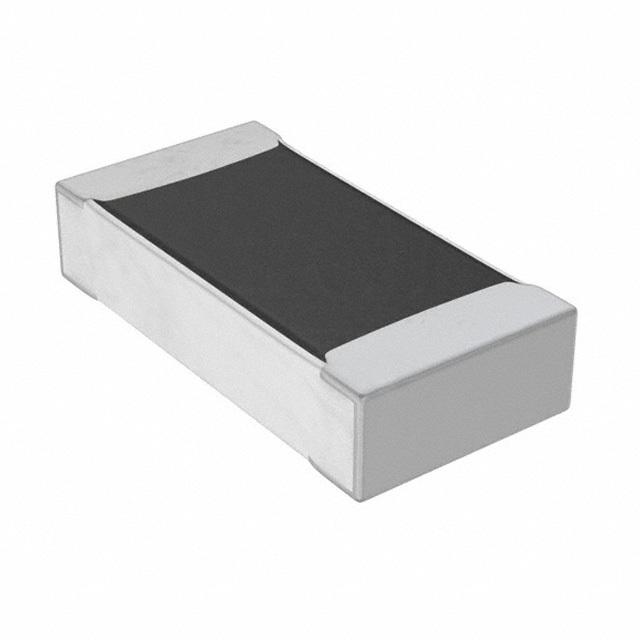

Same model may have multiple batches, images only for reference.
LRC-LRF2010LF-01-R020F TT Electronics
Same model may have multiple batches, images only for reference.

LRC-LRF2010LF-01-R020F

Part No LRC-LRF2010LF-01-R020F
Manufacturer TT Electronics
Catalog Chip Resistor - Surface Mount
Description RES SMD 0.02 OHM 1% 1W 2010
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer TT Electronics/IRC
Packaging Reel - TR
Resistance (Ohms) 0.02
Tolerance ±1%
Power (Watts) 1W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient 300ppm/°C
Temperature Range - Operating -55°C to 150°C
Case / Package 2010
Height - Seated (Max) 0.033" (0.84mm)
Number of Terminations 2
Win Source Part Number 1057501-LRC-LRF2010LF-01-R020F
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LRC-LRF2010LF-01-R020F CAD Model

Description

This electronic component is a resistor manufactured by TT Electronics/IRC and has a Win Source Part Number of 1057501-LRC-LRF2010LF-01-R020F.

  • Manufacturer: TT Electronics/IRC
  • Product: Resistor
  • Win Source Part Number: 1057501-LRC-LRF2010LF-01-R020F
  • Features: Automotive AEC-Q200, Current Sense, Moisture Resistance
  • Height: 0.033 inches
  • Tolerance: ±1%
  • Temperature Coefficient: 300ppm/°C
  • Power: 1W
  • Resistance: 0.02 ohms
  • Composition: Thick Film
  • Terminations: Two
  • Category: Resistor
  • Operating Temperature Range: -55°C to 150°C
