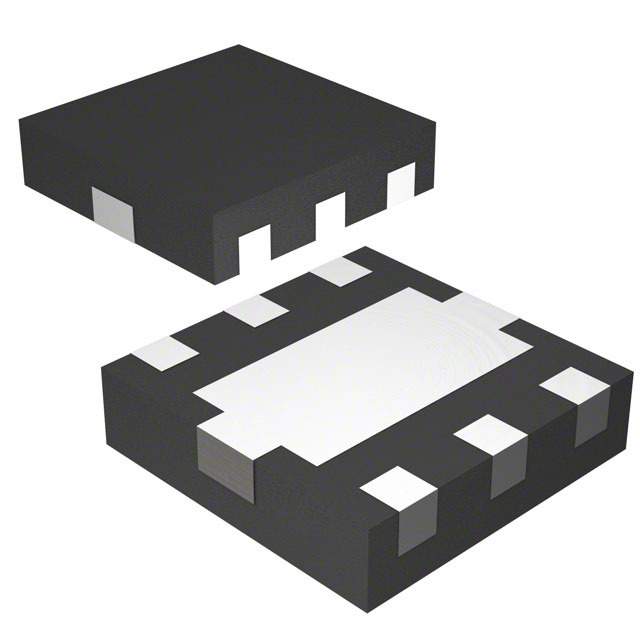

Same model may have multiple batches, images only for reference.
UPG2164T5N CEL
Same model may have multiple batches, images only for reference.

UPG2164T5N

Part No UPG2164T5N
Manufacturer CEL
Catalog RF Switches
Description IC SW DPDT 2.4GHZ, 6GHZ 6-TSON
Datasheet
UPG2164T5N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer CEL
Packaging Reel
Part Status Obsolete
Frequency - Lower 2.4GHz
Frequency - Upper 6GHz
Isolation @ Frequency 17dB @ 6GHz (typ)
Insertion Loss @ Frequency 0.7dB @ 6GHz
IIP3 50dBm (typ)
Topology Reflective
Circuit DPDT
P1dB 31dBm (typ) IP1dB
Impedance 50 Ohm
Temperature Range - Operating -45°C ~ 85°C
RF Type 802.11a/b/g/WiFi, WLAN
Case 6-XFDFN Exposed Pad
Supplier Device Package 6-TSON
Win Source Part Number UPG2164T5N-E2-A-396017
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UPG2164T5N CAD Model

Description

The CEL UPG2164T5N-E2-A-396017 is a DPDT reflective switch with an impedance of 50 Ohm.

  • Frequency Range: 2.4GHz to 6GHz
  • Isolation: 17dB @ 6GHz (typ)
  • Insertion Loss: 0.7dB @ 6GHz
  • IIP3: 50dBm (typ)
  • P1dB: 31dBm (typ) IP1dB
  • Suitable for: is suitable for use in RF/IF and RFID applications.
  • Supply and Demand Status: It has a balance supply and demand status.
