ARD10024 Panasonic – Price, Stock & Datasheet

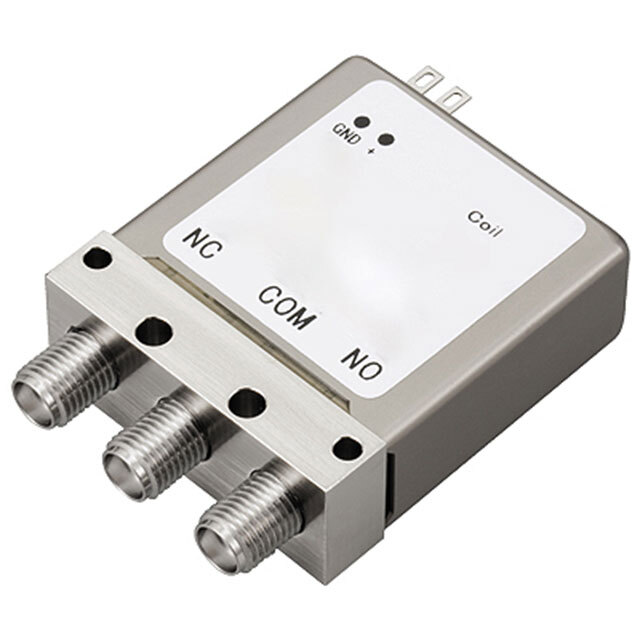

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

RF Type General Purpose
Topology Reflective
Circuit SPDT
Frequency Range 0Hz ~ 18GHz
Isolation 60dB (min)
Insertion Loss 0.5dB (max)
Test Frequency 18GHz
Impedance 50Ohm
Voltage - Supply 24V
Temperature Range - Operating -55°C ~ 85°C
Case / Package Module, Pin Contacts
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1552369-ARD10024
Ultra Librarian 3D Model Ultra Librarian ARD10024 CAD Model
