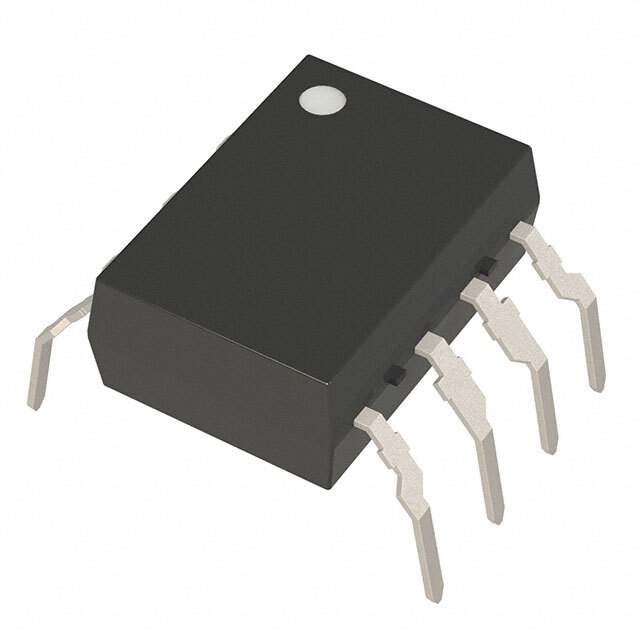

PS9687L1-A

Part No PS9687L1-A
Manufacturer CEL
Catalog Optoisolators - Logic Output
Description OPTOISO 5KV OPEN COLLECTOR 8DIP
Datasheet
PS9687L1-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Tube/Rail
Status Obsolete(EOL)
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 5000Vrms
Common Mode Transient Immunity (Min) 10kV/μs
Input Type DC
Output Type Open Collector
Channel Output Current 25mA
Data Rate 10Mbps
Propagation Delay tpLH / tpHL (Max) 75ns, 75ns
Rise and Fall Time 20ns, 10ns
Forward Voltage 1.65V
Continuous forward current- Max 30mA
Supply Voltage - Operating 4.5 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Case / Package 8-DIP
Win Source Part Number 1090255-PS9687L1-A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PS9687L1-A CAD Model

Description

The CEL PS9687L1-A is a high-speed optocoupler with an open collector output type.

  • Output Type: Open Collector
  • Data Rate: 10Mbps
  • Forward Voltage: 1.65V
  • Input Type: DC
  • Channels: 1
  • Inputs (Side 1): 1
  • Inputs (Side 2): 0
  • Common Mode Transient Immunity: 10kV/μs
  • Propagation Delay: 75ns/75ns
  • Isolation Voltage: 5000Vrms
  • Supply Voltage: 4.5V to 5.5V
  • Case: 8-DIP
  • Channel Output Current: 25mA
  • Forward Current: 30mA
  • Operating Temperature: -40°C to 85°C
