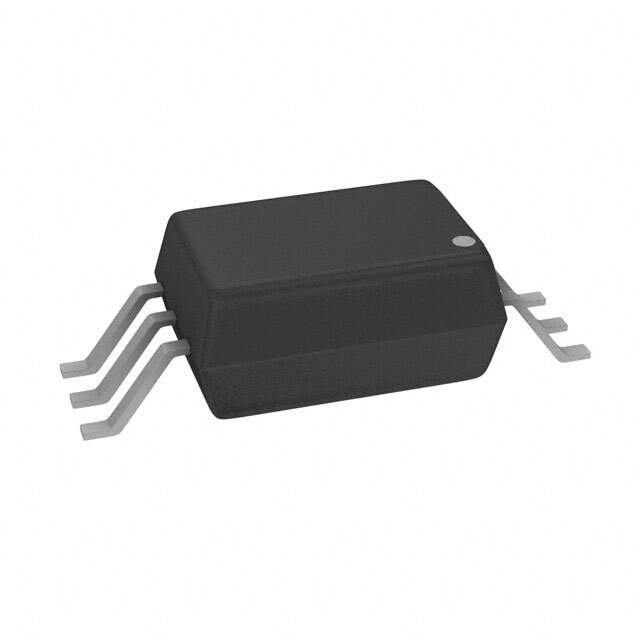

FOD8163TR2 Real Image
Same model may have multiple batches, images only for reference.

FOD8163TR2

Part No FOD8163TR2
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Logic Output
Description OPTOISO 5KV OPEN COLLECTOR 6SOP
Datasheet
FOD8163TR2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 5000Vrms
Common Mode Transient Immunity (Min) 20kV/μs
Input Type DC
Output Type Open Collector, Schottky Clamped
Channel Output Current 50mA
Data Rate 10Mbps
Propagation Delay tpLH / tpHL (Max) 90ns, 80ns
Rise and Fall Time 20ns, 10ns
Forward Voltage 1.45V
Continuous forward current- Max 25mA
Supply Voltage - Operating 3 V to 5.5 V
Temperature Range - Operating -40°C to 100°C
Mounting SMD (SMT)
Case / Package 6-SOP
Win Source Part Number 1039376-FOD8163TR2
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian FOD8163TR2 CAD Model

Description

The Fairchild/ON Semiconductor FOD8163TR2 is a Schottky clamped, open collector output optocoupler designed for high-speed data communication.

  • Data Rate: 10Mbps
  • Common Mode Transient Immunity: 20kV/μs
  • Isolation Voltage: 5000Vrms
  • Propagation Delay (tpLH): 90ns
  • Propagation Delay (tpHL): 80ns
  • Maximum Channel Output Current: 50mA
  • Continuous Forward Current: 25mA
  • Operating Temperature: -40°C to 100°C
  • Package: 6-SOP
  • Supply Voltage: 3V to 5.5V
