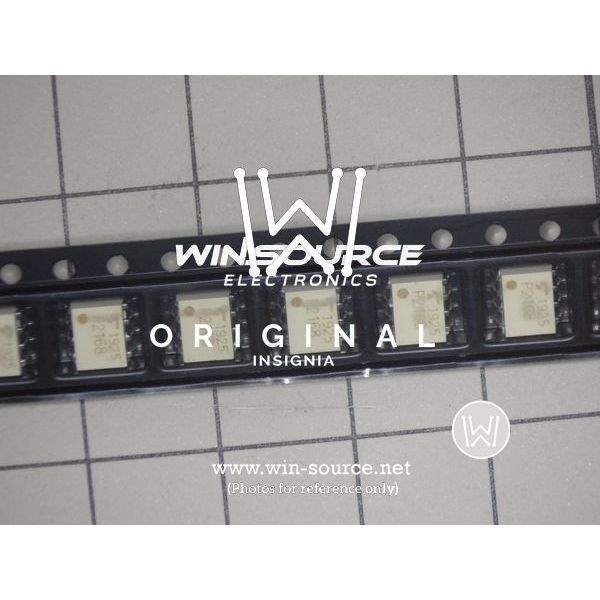

TLP2168(TP,F) Toshiba Semiconductor and Storage TLP2168(TP,F) Real Image TLP2168(TP,F) real image TLP2168(TP,F) real image 2
Same model may have multiple batches, images only for reference.
TLP2168(TP,F) Toshiba Semiconductor and Storage TLP2168(TP,F) Real Image TLP2168(TP,F) real image TLP2168(TP,F) real image 2
TLP2168(TP,F) Toshiba Semiconductor and Storage TLP2168(TP,F) Real Image TLP2168(TP,F) real image TLP2168(TP,F) real image 2
Same model may have multiple batches, images only for reference.

TLP2168(TP,F)

Part No TLP2168(TP,F)
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Logic Output
Description OPTOISO 2.5KV 2CH OPN COL 8SO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Number of Channels 2
Inputs - Side 1/Side 2 2/0
Isolation Voltage 2500Vrms
Common Mode Transient Immunity (Min) 15kV/μs
Input Type DC
Output Type Open Collector
Channel Output Current 25mA
Data Rate 20MBd
Propagation Delay tpLH / tpHL (Max) 60ns, 60ns
Rise and Fall Time 30ns, 30ns
Forward Voltage 1.57V
Continuous forward current- Max 25mA
Supply Voltage - Operating 2.7 V to 5.5 V
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Case / Package 8-SO
Win Source Part Number 1108868-TLP2168(TP,F)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TLP2168(TP,F) CAD Model

Description

The Toshiba Semiconductor and Storage TLP2168(TP,F) is a high-speed optocoupler.

  • Application: Isolator
  • Data Rate: 20MBd
  • Isolation Voltage: 2500Vrms
  • Common Mode Transient Immunity: 15kV/μs
  • Propagation Delay: 60ns
  • Popularity: Medium
  • Supply and Demand: Balanced
