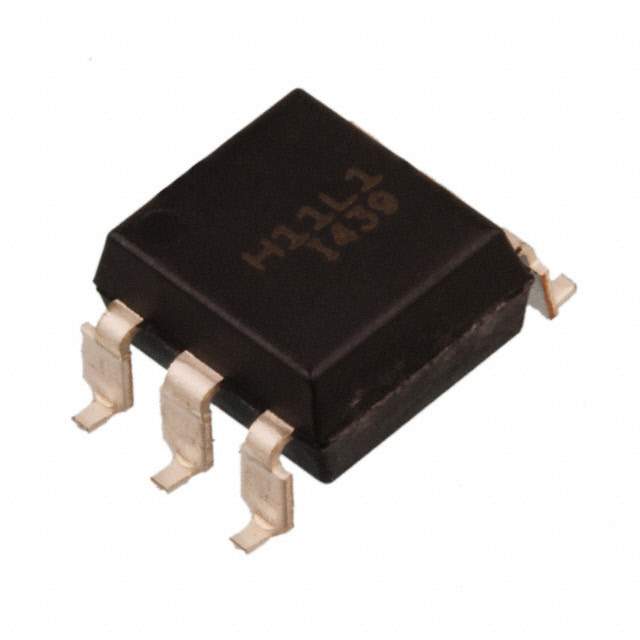

H11L1SM Fairchild/ON Semiconductor H11L1SM Real Image H11L1SM label picture
Same model may have multiple batches, images only for reference.
H11L1SM Fairchild/ON Semiconductor H11L1SM Real Image H11L1SM label picture
H11L1SM Fairchild/ON Semiconductor H11L1SM Real Image H11L1SM label picture
Same model may have multiple batches, images only for reference.

H11L1SM

Part No H11L1SM
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Logic Output
Description Optocoupler Logic-Out Open Collector DC-IN 1-CH 6-Pin PDIP SMD Bag / OPTOISO 4.17KV OPN COLL 6SMD
Datasheet
H11L1SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 4170Vrms
Input Type DC
Output Type Open Collector
Channel Output Current 50mA
Data Rate 1MHz
Propagation Delay tpLH / tpHL (Max) 4μs, 4μs
Rise and Fall Time 100ns, 100ns
Forward Voltage 1.2V
Continuous forward current- Max 30mA
Supply Voltage - Operating 3 V to 15 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 6-SMD
Win Source Part Number 1042192-H11L1SM
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Power Management, Industrial
Quantity per package 1k pcs
Family Name H11L1SM
Introduction Date November 02, 2001
ECCN EAR99
Country of Origin China, Japan, Malaysia, Republic of Korea, Singapore, Thailand
Halogen Free Not Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian H11L1SM CAD Model

Description

The Fairchild/ON Semiconductor 1042192-H11L1SM is an optoisolator with an output type of open collector.

  • Output Type: Open Collector
  • Data Rate: 1MHz
  • Common Mode Transient Immunity (Min): -
  • Isolation Voltage: 4170Vrms
  • Family Name: H11L1SM
  • Application: Isolators
  • Channel Output Current: 50mA
  • Package: 6-SMD
  • Rise and Fall Time: 100ns, 100ns
  • Supply and Demand Status: Sufficient
  • Quantity per Package: 1k pcs
  • Commonly Used In: Power Management and Industrial Applications
