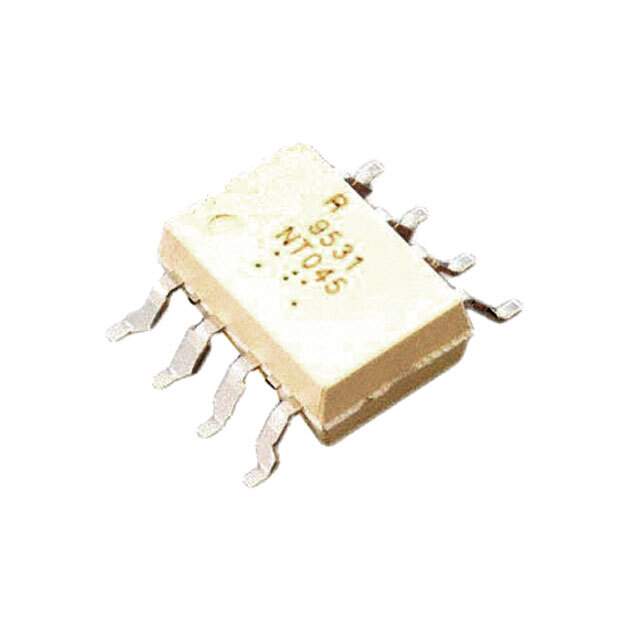

PS9531L2-E3-AX Real Image
Same model may have multiple batches, images only for reference.

PS9531L2-E3-AX

Part No PS9531L2-E3-AX
Manufacturer CEL
Catalog Isolators - Gate Drivers
Description OPTOISO 5KV 1CH GATE DRIVER 8SMD  /  2.5A Gate Driver Optical Coupling 5000Vrms 1 Channel 8-SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr CEL
Package Tape & Reel
Technology Optical Coupling
Number of Channels 1
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 50kV/µs
Propagation Delay tpLH / tpHL (Max) 175ns, 175ns
Pulse Width Distortion (Max) 75ns
Rise / Fall Time (Typ) 40ns, 40ns
Current - Output High, Low 2A, 2A
Current - Peak Output 2.5A
Voltage - Forward (Vf) (Typ) 1.56V
Current - DC Forward (If) (Max) 25 mA
Voltage - Output Supply 15V ~ 30V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 8-SMD, Gull Wing
Supplier Device Package 8-SMD
Approval Agency CSA, SEMKO, UL
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Other Names PS9531L2-E3-AXDKR,PS9531L2-E3-AXTR,PS9531L2-E3-AXCT
Standard Package 1,000
Win Source Part Number 984549-PS9531L2-E3-AX
Ultra Librarian 3D Model Ultra Librarian PS9531L2-E3-AX CAD Model

Description

The PS9531L2-E3-AX is an optical coupling isolator with a current output of 2A (high and low).

  • Voltage Isolation: 5000Vrms
  • Common Mode Transient Immunity: 50kV/μs
  • Propagation Delay: 175ns (tpLH/tpHL max)
  • Peak Output Current: 2.5A
  • Pulse Width Distortion: 75ns (max)
  • Operating Temperature: -40°C to 125°C
  • Voltage Output Supply: 15V to 30V
  • Package: 8-SMD, Gull-Wing
  • Application: Isolators-Gate Drivers
  • Approval Agency Certifications: CSA, SEMKO, UL
  • Output Current: 2A (High and Low)
