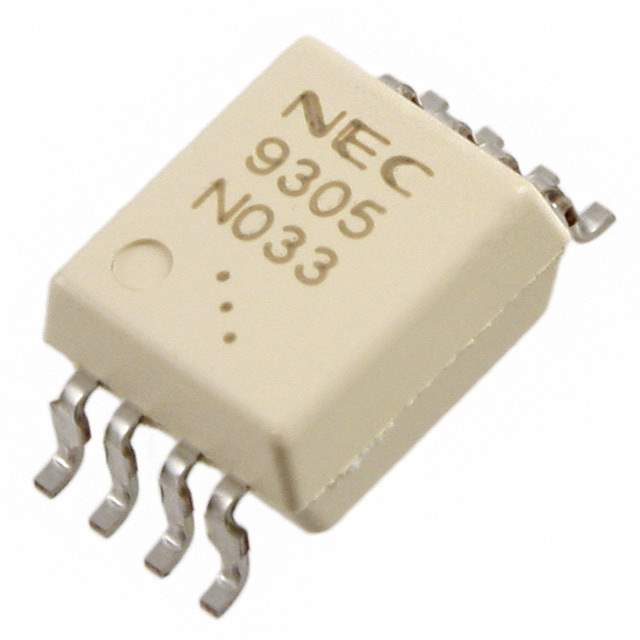

PS9305L-AX

Part No PS9305L-AX
Manufacturer CEL
Catalog Isolators - Gate Drivers
Description OPTOISO 5KV GATE DRIVER 8SDIP GW
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Cut Strip
Status Active
Technology Optical Coupling
Number of Channels 1
Isolation Voltage 5000Vrms
Common Mode Transient Immunity (Min) 25kV/μs
Propagation Delay tpLH / tpHL (Max) 250ns, 250ns
Pulse Width Distortion (Max) 100ns
Rise and Fall Time 50ns, 50ns
Current - Output High, Low 2A, 2A
Current - Peak Output 2.5A
Forward Voltage 1.56V
Continuous forward current- Max 25mA
Supply Voltage - Operating 15 V to 30 V
Temperature Range - Operating -40°C to 110°C
Mounting SMD (SMT)
Case / Package 8-SDIP Gull Wing
Approvals CSA, SEMKO, UL
Win Source Part Number 1090231-PS9305L-AX
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PS9305L-AX CAD Model

Description

The CEL PS9305L-AX is an optically coupled isolator with a transistor output.

  • DC Current Transfer Ratio (Min): 100% @ 1mA
  • DC Current Transfer Ratio (Max): 400% @ 1mA
  • Forward Voltage: 1.56V
  • Isolation Voltage: 5000Vrms
  • Mounting Package: SMD 8-SDIP Gull Wing
  • Rise and Fall Time: 50ns
  • Continuous Forward Current (Max): 25mA
  • Operating Temperature: -40°C to 110°C
  • Application: High voltage isolation
