Same model may have multiple batches, images only for reference.

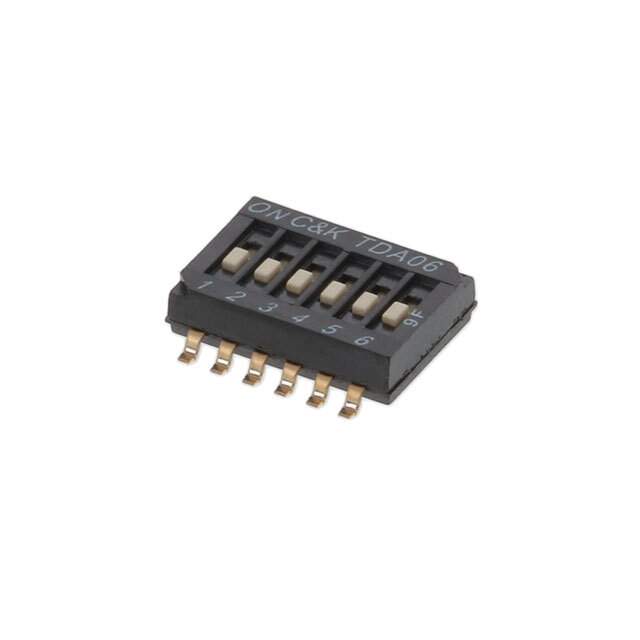

TDA06H0SB1 Real Image
Same model may have multiple batches, images only for reference.

TDA06H0SB1

Part No TDA06H0SB1
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V
Datasheet
TDA06H0SB1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer C&K Components
Packaging Reel - TR
Status Active
Circuit SPST
Number of Positions 6
Current Rating 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.091" (2.30mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Tape Seal
Body Material Polyphenylene Sulfide (PPS)
Length 0.344" (8.75mm)
Temperature Range - Operating -40°C to 85°C
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Win Source Part Number 083568-TDA06H0SB1
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TDA06H0SB1 CAD Model

Description

The TDA06H0SB1 slide switch is a high-quality switch from C&K.

  • Circuit: SPST circuit switch
  • Actuator Type: slide actuator type
  • Termination Style: gull wing termination style
  • Voltage Rating: 24VDC
  • Contact Finish: gold contact finish
  • Body Material: polyphenylene sulfide (PPS) body material
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • Temperature Range: -40°C to 85°C
  • Mount Type: surface mount type
  • Standard Package: 6
  • Ideal For: applications where a slide switch is required.
