Same model may have multiple batches, images only for reference.

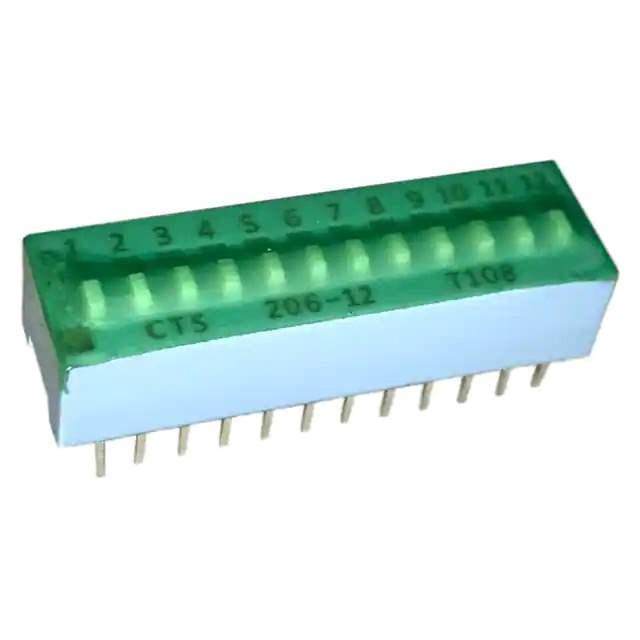

206-12ST Real Image
Same model may have multiple batches, images only for reference.

206-12ST

Part No 206-12ST
Manufacturer CTS Electrocomponents
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 50MA 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr CTS Electrocomponents
Series 206
Package Tube
Product Status Active
Circuit SPST
Number of Positions 12
Current Rating (Amps) 50mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.334" (8.48mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Temperature Range - Operating -55°C ~ 85°C
Body Material Plastic
Length 1.286" (32.66mm)
Electrical Life 10,000 Cycles
Standard Package 15 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
California Prop 65 Warning Information
Win Source Part Number 540201-206-12ST
Ultra Librarian 3D Model Ultra Librarian 206-12ST CAD Model

Description

The 540201-206-12ST is a DIP switch from the 206 series.

  • Positions: 12
  • Pitch: 0.100" (2.54mm)
  • Termination: PC Pins
  • Features: Epoxy sealed terminals and tape seal
  • Contact Finish: Gold
  • Voltage Rating: 24VDC
  • Washable: Yes
