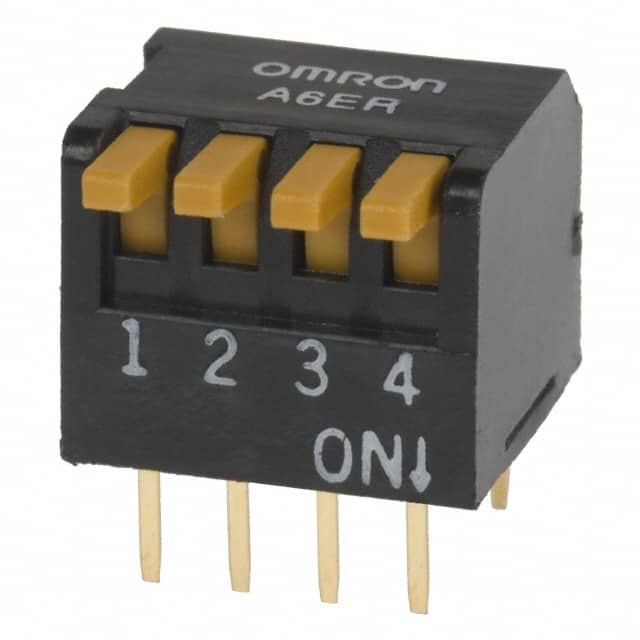

A6ER-4104
Same model may have multiple batches, images only for reference.

A6ER-4104

Part No A6ER-4104
Manufacturer Omron
Catalog DIP Switches
Description SWITCH PIANO DIP SPST 25MA 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Omron
Series A6ER
Package Tube
Product Status Obsolete
Circuit SPST
Number of Positions 4
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Piano
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.402" (10.20mm)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Features Sealed - Flux Protection
Temperature Range - Operating -20°C ~ 70°C
Length 0.461" (11.71mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Standard Package 39 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 845715-A6ER-4104
Ultra Librarian 3D Model Ultra Librarian A6ER-4104 CAD Model

Description

The A6ER-4104 is a DIP switch from Omron, designed for easy configuration and control in electronic devices.

  • Features: Sealed and Flux Protected
  • Positions: 4
  • Pitch: 0.100" (2.54mm)
  • Termination Style: PC Pin
  • Contact Finish: Gold
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Actuator: Raised
  • Mounting Type: Through Hole
  • Temperature Range: -20°C to 70°C
