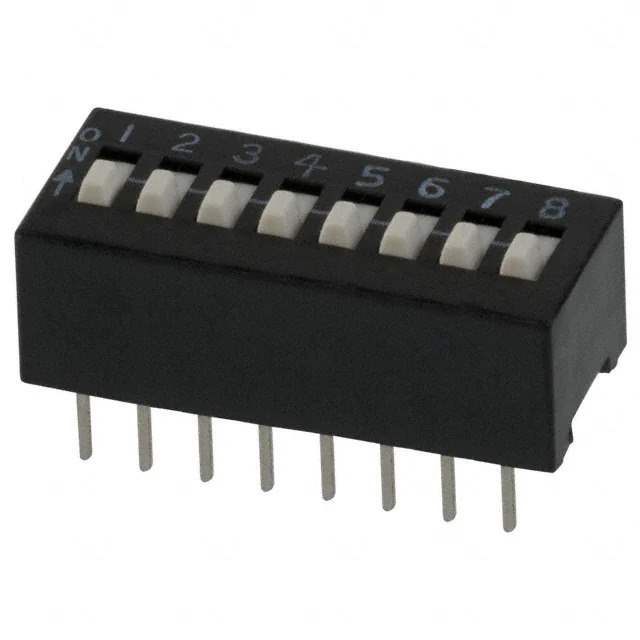

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr CTS Electrocomponents
Series 208
Package Tube
Product Status Active
Circuit SPST
Number of Positions 8
Current Rating (Amps) 50mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Finish Tin
Height Above Board 0.334" (8.48mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -55°C ~ 85°C
Body Material Plastic
Length 0.886" (22.50mm)
Electrical Life 2,000 Cycles
Standard Package 25 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
California Prop 65 Warning Information
Win Source Part Number 854533-208-8
Ultra Librarian 3D Model Ultra Librarian 208-8 CAD Model

Description

The 854533-208-8 is an 8-position DIP switch from the 208 series by CTS Electrocomponents.

  • Pitch: 0.100" (2.54mm)
  • Termination: PC pin
  • Voltage Rating: 24VDC
  • Current Rating: 50mA
  • Height Above Board: 0.334" (8.48mm)
  • Length: 0.886" (22.50mm)
  • Electrical Life: 2,000 cycles
  • Actuator Level: Raised
  • Washable: No
  • Mounting: Through-hole mountable
  • Operating Temperature Range: -55°C to 85°C
  • Product Status: Active
  • Category: Switches
